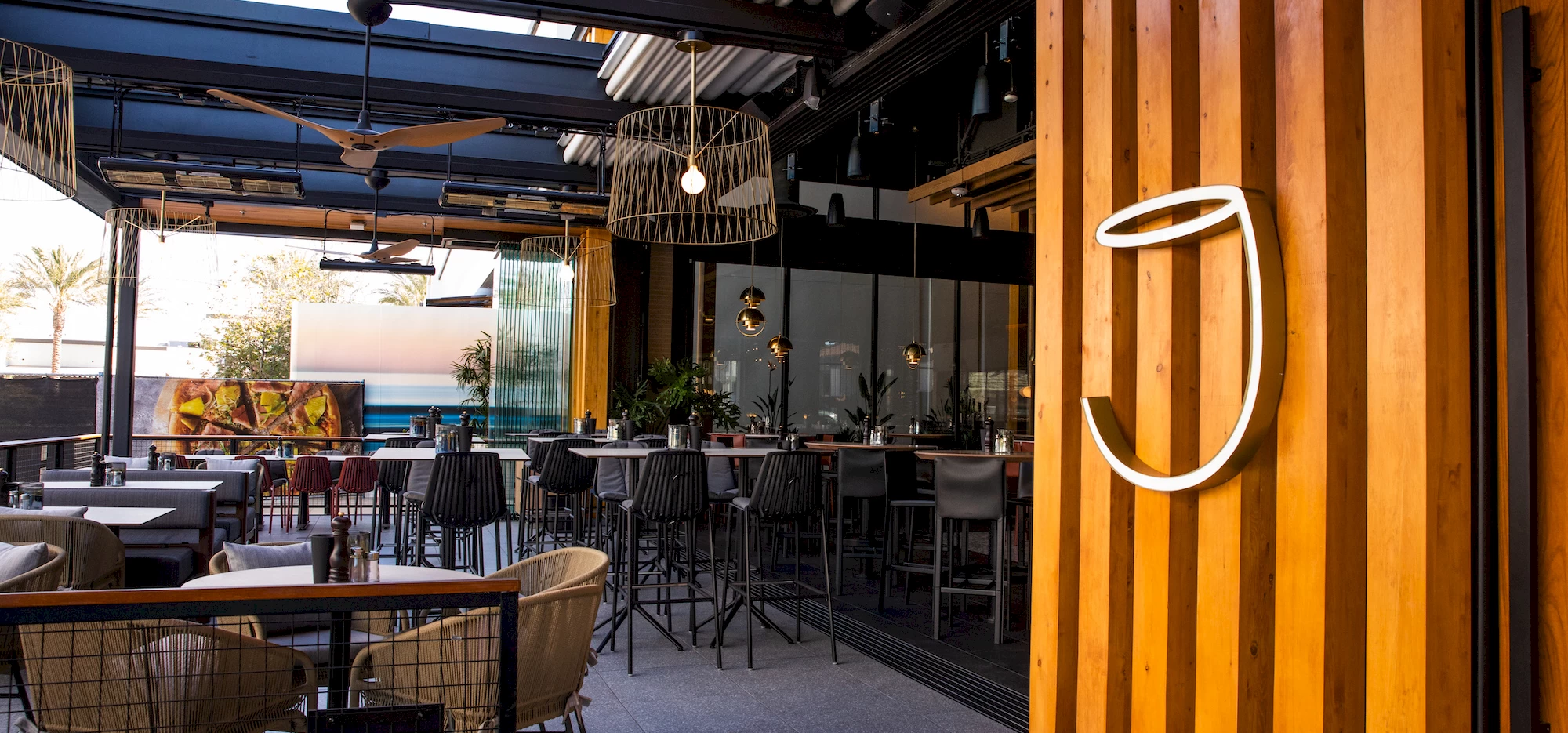

Alpha Series, H3, Radiant Heater, Joey's Restaurant, Manhattan Beach, CA
Image attribution:

Solaira, Alpha Series, H3, Joey's Restaurant, Manhattan Beach, CA

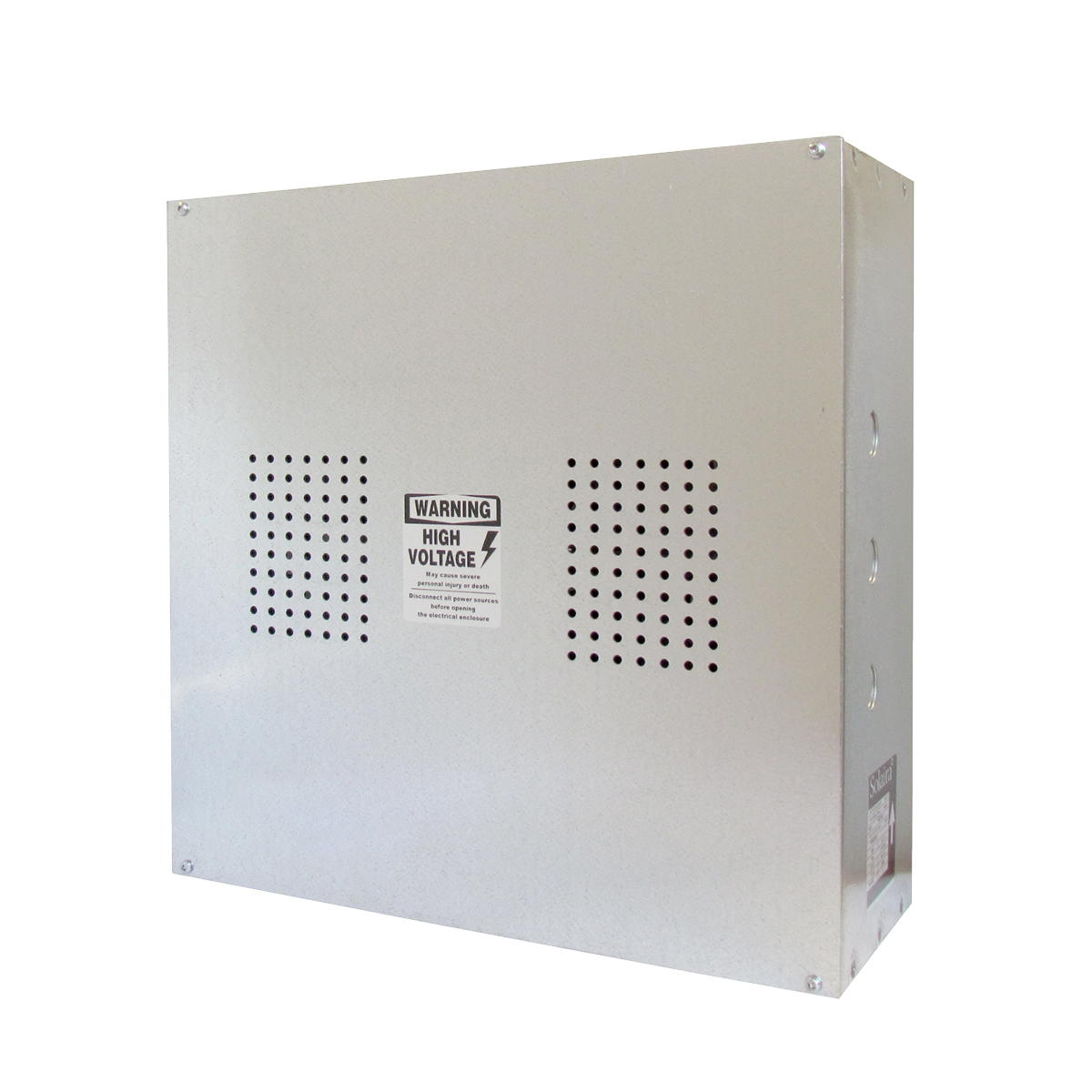

Omnis Controls - Omnis Heater Controls (OC)

Take control of your electric heating equipment, stand alone or BACnet, BMS connected

Engineered to give system designers and engineers a simple one-zone option for a complete, controlled output of the designated zone area. Keeping your customers comfortable when they need it most.

PASCR30-1-DIN

120V/208V/240V/277V - 30 Amp Control
  • Enabled preset intervals, ON / OFF momentary
  • Pushbutton switch feature
  • Configurable audible alert before turning OFF
  • Adjustable to up to 24 hours
  • 3-Way capable *( Need SST option )
  • 5 button selection ( Preset time selection )
  • LED Indicators ( Illuminates once time is selected )
  • All Solid-State Construction
  • Exclusive “2 Millisecond” Fuses for Short-Circuit Protection
  • Exclusive “ VboClamping” Transient Voltage Protection
  • Exclusive Full Rated Operation In 50°C (122° F) without fans
  • Universal architecture for 110 - 120V / 208 - 240V application
  • 1/2 Second Soft-Start
  • OFF Switch (Manual override to OFF)
Talk to Sales

PASCR90-1-DIN

120V/208V/240V/277V - 90 Amp Control
  • Enabled preset intervals, ON / OFF momentary
  • Pushbutton switch feature
  • Configurable audible alert before turning OFF
  • Adjustable to up to 24 hours
  • 3-Way capable *( Need SST option )
  • 5 button selection ( Preset time selection )
  • LED Indicators ( Illuminates once time is selected )
  • All Solid-State Construction
  • Exclusive “2 Millisecond” Fuses for Short-Circuit Protection
  • Exclusive “ VboClamping” Transient Voltage Protection
  • Exclusive Full Rated Operation In 50°C (122° F) without fans
  • Universal architecture for 110 - 120V / 208 - 240V application
  • 1/2 Second Soft-Start
  • OFF Switch (Manual override to OFF)
Talk to Sales

PASCR165-1-DIN

120V/208V/240V/277V - 165 Amp Control
  • Enabled preset intervals, ON / OFF momentary
  • Pushbutton switch feature
  • Configurable audible alert before turning OFF
  • Adjustable to up to 24 hours
  • 3-Way capable *( Need SST option )
  • 5 button selection ( Preset time selection )
  • LED Indicators ( Illuminates once time is selected )
  • All Solid-State Construction
  • Exclusive “2 Millisecond” Fuses for Short-Circuit Protection
  • Exclusive “ VboClamping” Transient Voltage Protection
  • Exclusive Full Rated Operation In 50°C (122° F) without fans
  • Universal architecture for 110 - 120V / 208 - 240V application
  • 1/2 Second Soft-Start
  • OFF Switch (Manual override to OFF)
Talk to Sales

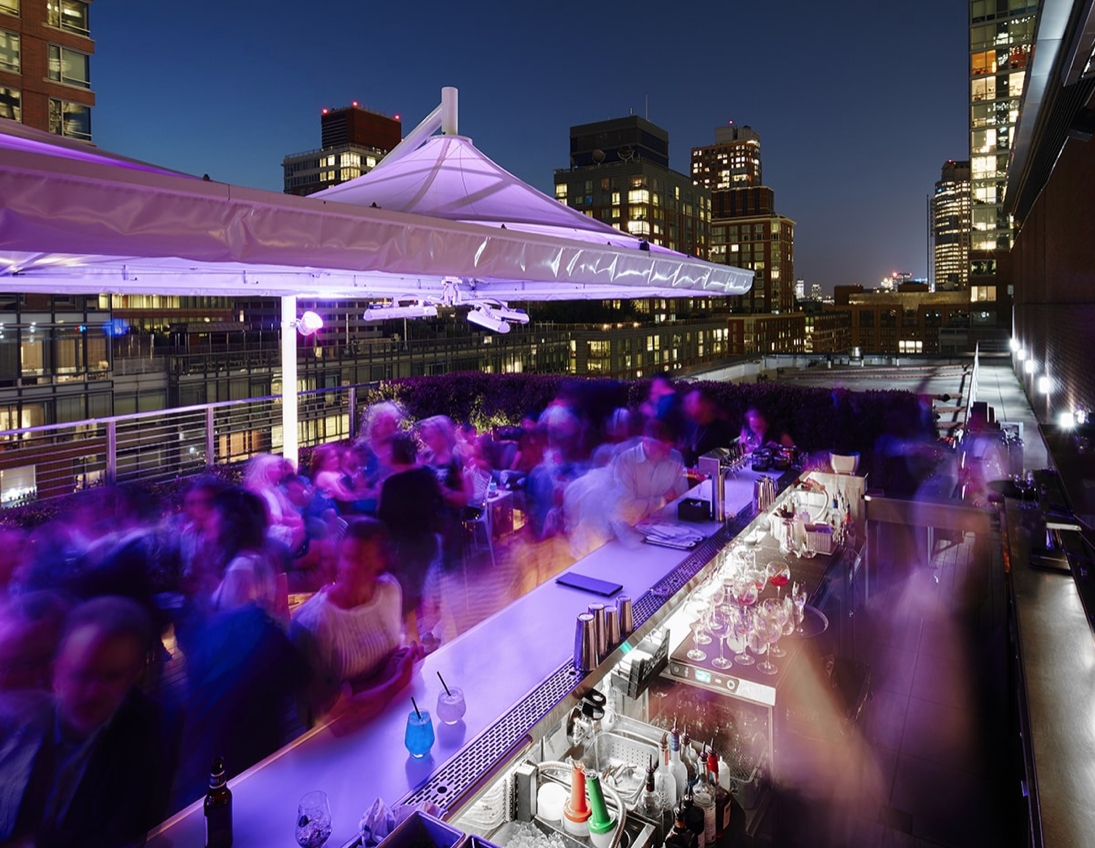

XL Slim Series, H1, Radiant Heater, Conrad Hotel Rooftop Bar, New York, NY
Image attribution:

Solaira, XL Slim Series, H1, Conrad Hotel Rooftop Bar, New York, NY

Single Zone Control

Commercial and home automation

Single Zone, Variable Control up to 200A of heater control. Omnis Control provides off-the-shelf, variable voltage output for your Solaira Heaters. Conveniently integrate with leading smart home automation systems like Lutron, Crestron & Control 4 or building automation with 0-10Vdc & 4-20mA ready inputs on all Omnis Control models.

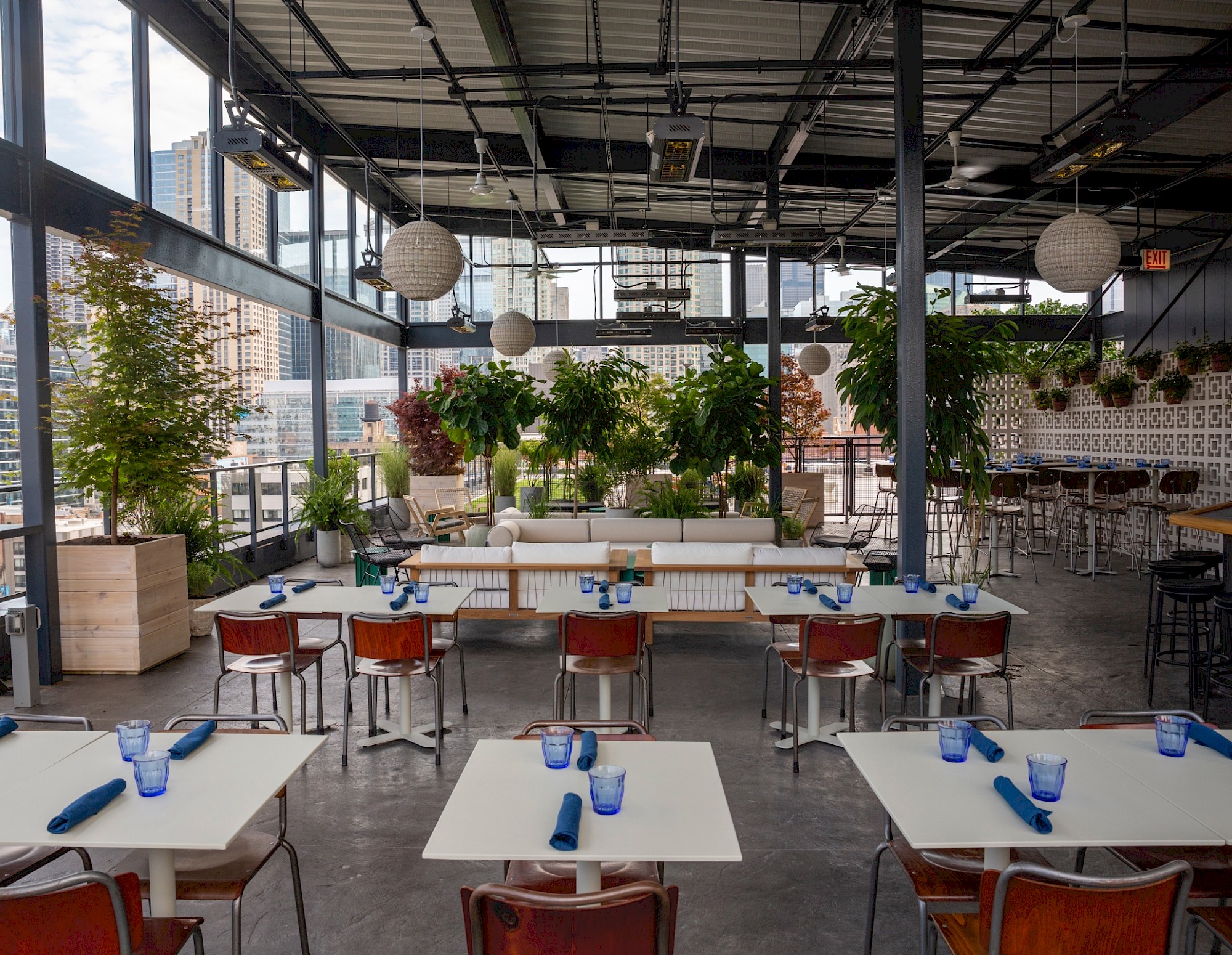

ICR Series, H2, Radiant Heater, Avec Bar, Chicago, IL
Image attribution:

Solaira, ICR Series, H2, Avec Bar, Chicago, IL

Variable SCR Control

The engine that powers Solaira

The engine that powers Solaira, Omnis Controls utilize the benefits of Phase Angle SCR control to provide 0-100% dimming output of your heaters. Reduce energy costs and power consumption by modulating required output based on your zone-specific requirements. Dim heaters to the ideal output with the included 0-100% potentiometer dimmer. With high inrush protection, Omnis SCR controls extends the longevity of your electric infrared emitters by preventing thermal shock. With higher precision and superior to mechanical contactors, put your trust in the reliability of Omnis Controls in your home or facility.

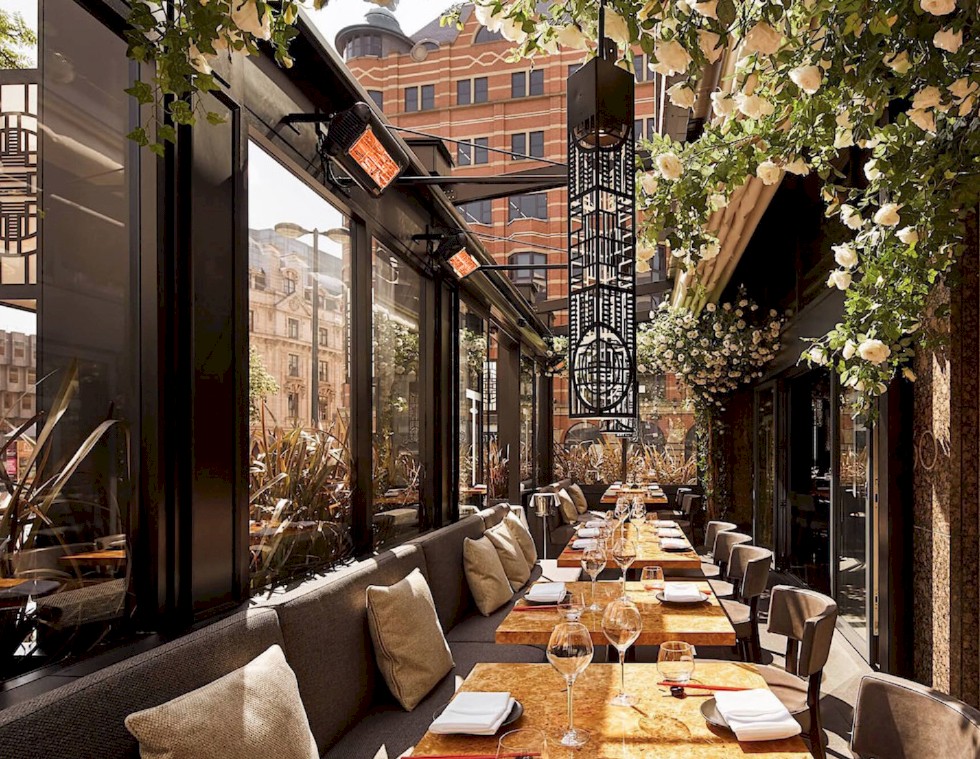

Alpha Series, H1, Radiant Heater, White Rose Garden Terrace, Leeds, UK
Image attribution:

Solaira, Alpha Series, H1, White Rose Garden Terrace, Leeds, UK

All-In-One Control Solution with Accessories

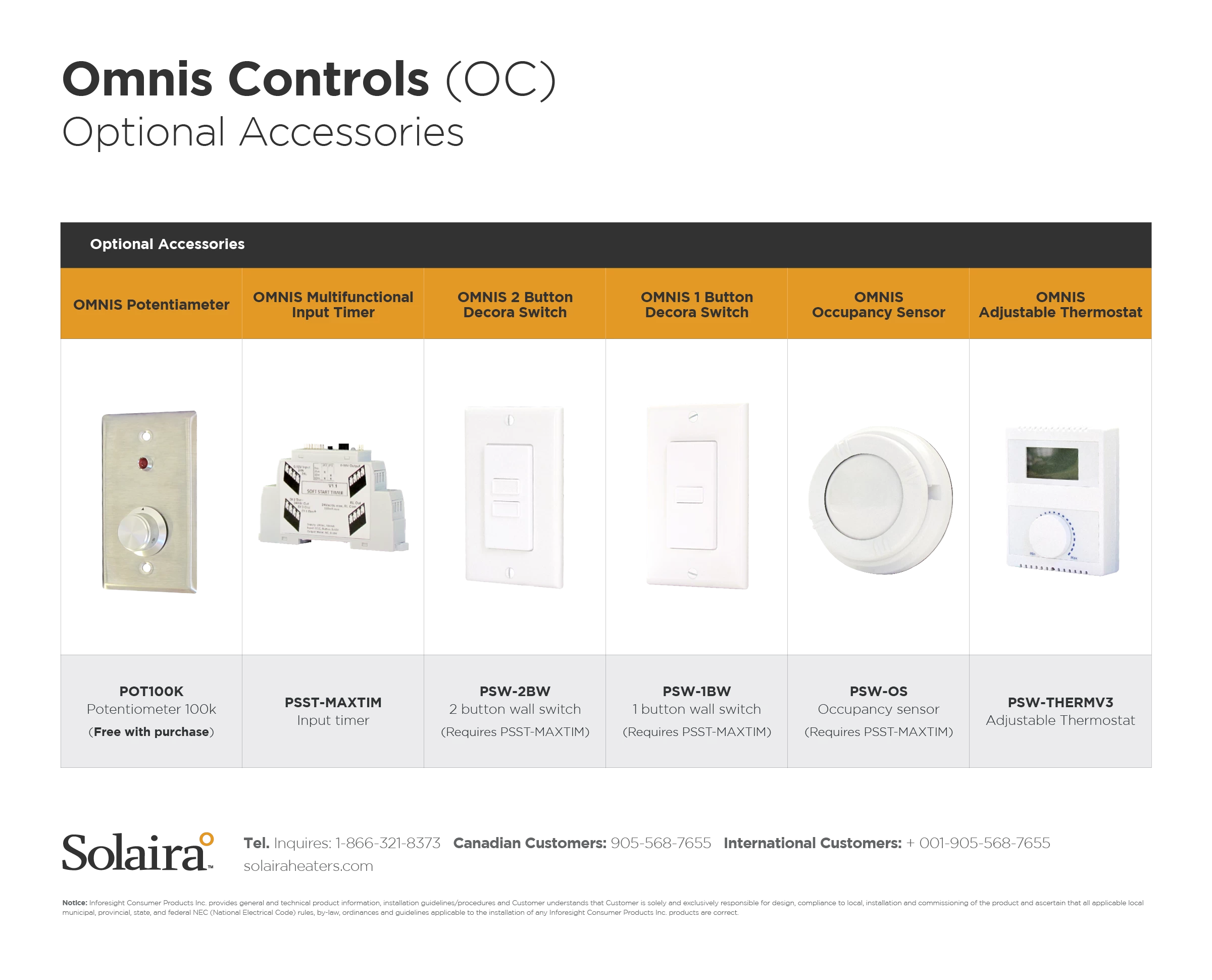

Accessory rich options available

Built ready with a wide range of inputs including 0-10Vdc and 4-20mA, Omnis controls are designed to be an all-in-one control solution with accessories that take infrared heating to the next level. Take controllability one step further and integrate with BACnet through your facilities building management system with the PSST-BACnet Omnis BACnet Gateway.  Configure auto-shutoff times to avoid running heaters when they are not needed with our PSST-MAXTIM Multifunctional Input Timer. With this accessory, you can then monitor power consumption like lighting and only activate heaters when your zone is occupied with our PSW-OS Omnis Occupancy Sensor. Add PSW-THERMV3 thermostats to modulate output based on zone temperature and simple PSW-2BW Decora wall switches allow you maximize the utility of you infrared heaters.

Accessories List

Technical Details

ModelPASCR30-1-DINPASCR90-1-DINPASCR165-1-DIN
Amperage30 A90 A165 A
Supply Feed120V, 208V, 240V, 277V
50-60 Hz
120V, 208V, 240V, 277V
50-60 Hz
120V, 208V, 240V, 277V
50-60 Hz
Supple PhaseSingle PhaseSingle PhaseSingle Phase
Input Type0-10Vdc OR 4-20mA0-10Vdc OR 4-20mA0-10Vdc OR 4-20mA
Output0-100% Variable0-100% Variable0-100% Variable
Fused OutputsNoneNoneNone
ZonesSingleSingleSingle
Control TypesPhase Angle Silicon Controlled RectifierPhase Angle Silicon Controlled RectifierPhase Angle Silicon Controlled Rectifier
StarterSoft Start, High Inrush ProtectionSoft Start, High Inrush ProtectionSoft Start, High Inrush Protection
ConstructionSolid StateSolid StateSolid State
Panel Dimensions16" (L) x 16" (W) x 6 1/8" (D)16" (L) x 16" (W) x 6 1/8" (D)20" (L) x 20" (W) x 12" (D)
Enclosure TypeNema 1Nema 1Nema 1
CertificationUL508/CSAUL508/CSAUL508/CSA
Included Accessories0-10Vdc Potentiometer (Dimmer)0-10Vdc Potentiometer (Dimmer)0-10Vdc Potentiometer (Dimmer)

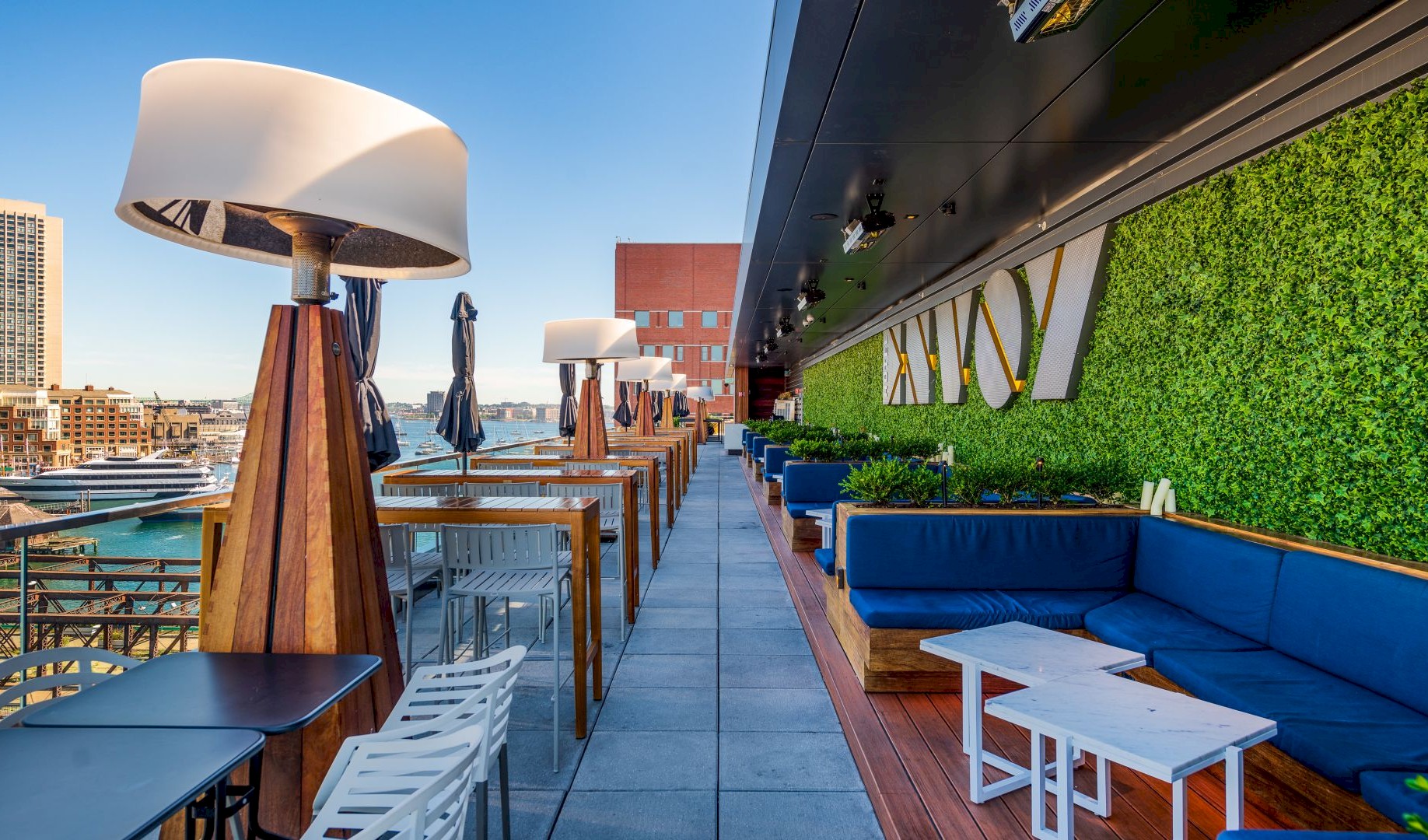

Omnis Control, ICR Series H2, Envoy Marriot, Boston, MA
Image attribution:

Omnis Control, ICR Series, H2, Envoy Marriot, Boston, MA

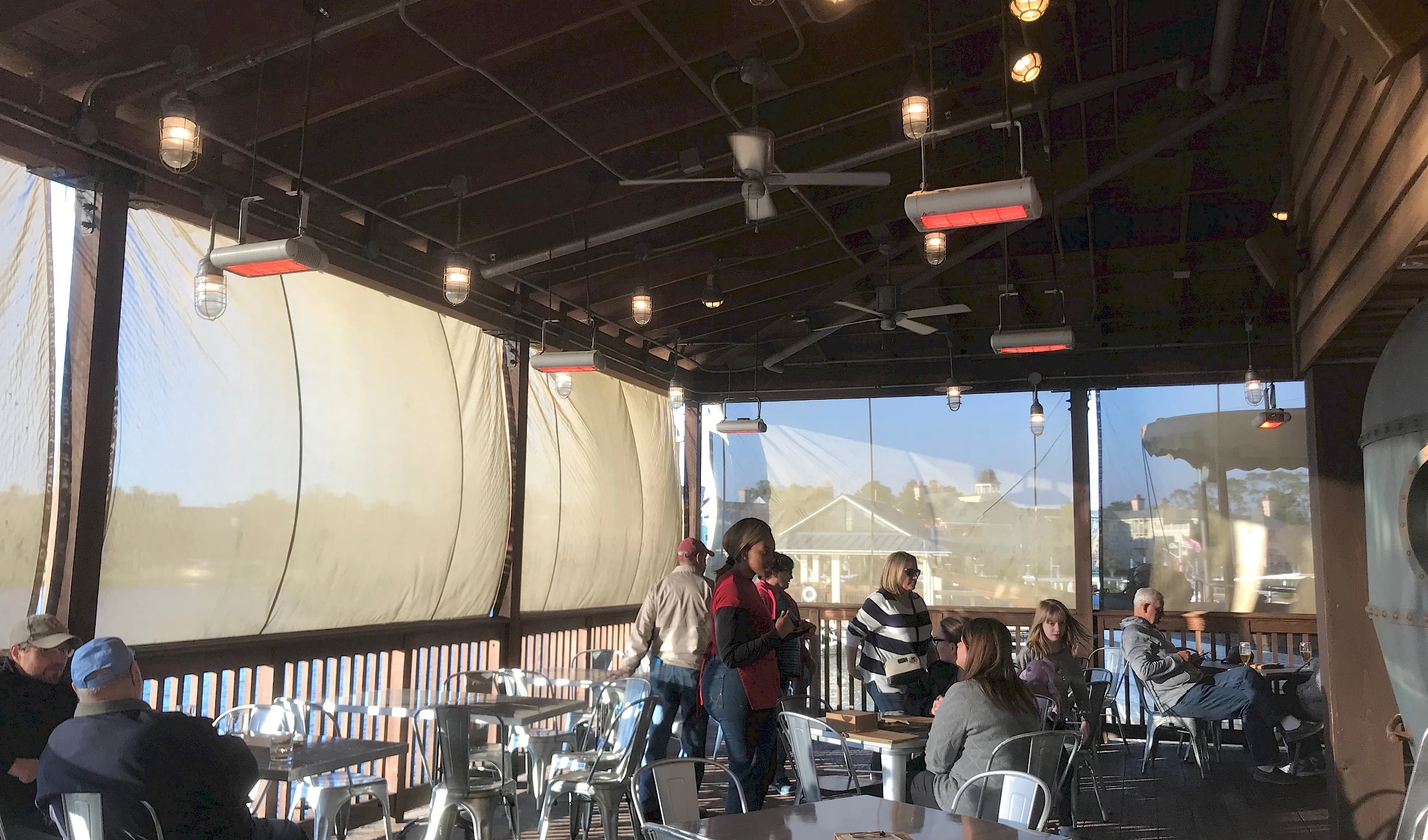

Omnis Control, Alpha Series H1, Commercial Application
Image attribution:

Omnis Control, Alpha Series, H1, Commercial Application

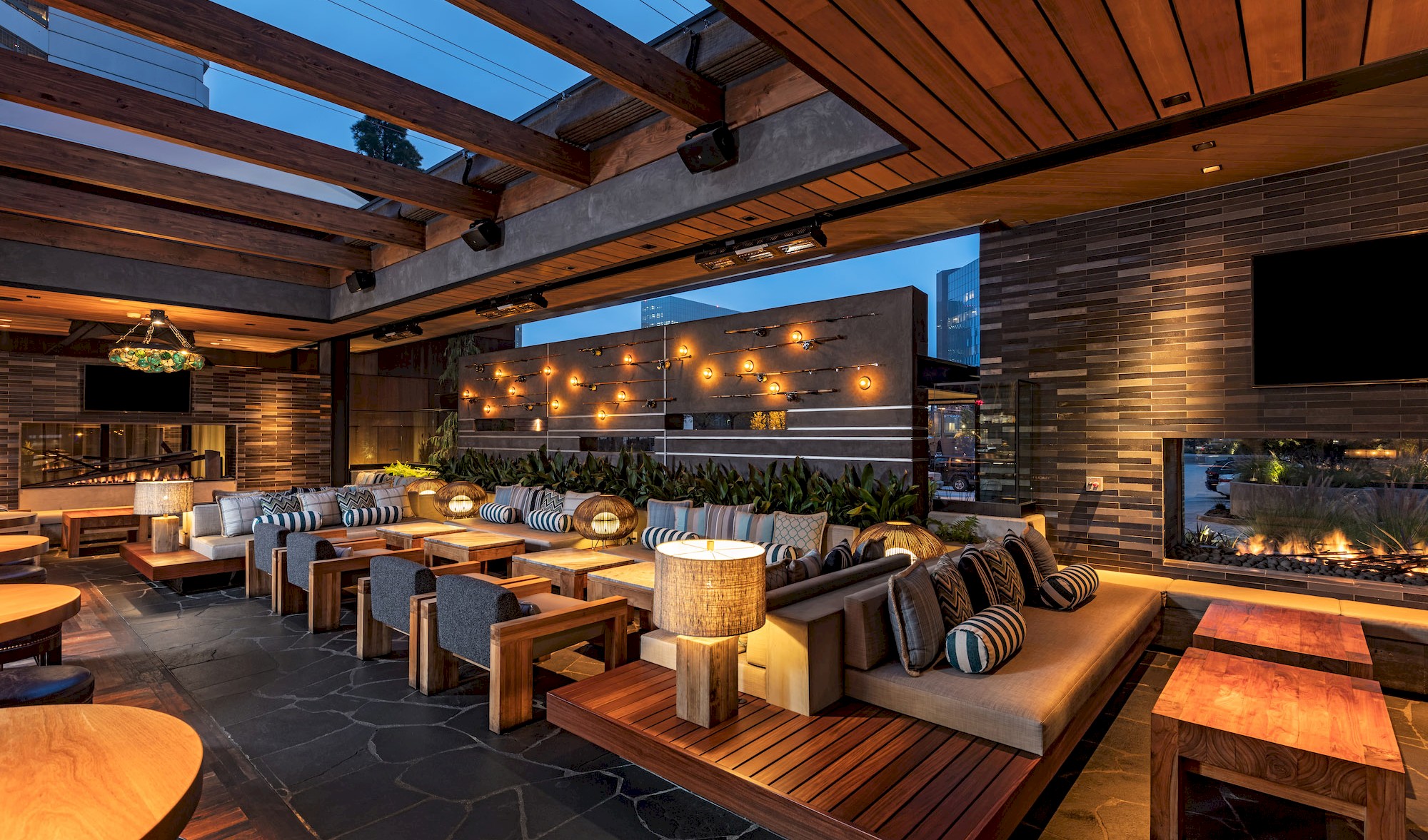

Omnis Control, ICR Series H3, Water Grill Restaurant, San Jose California
