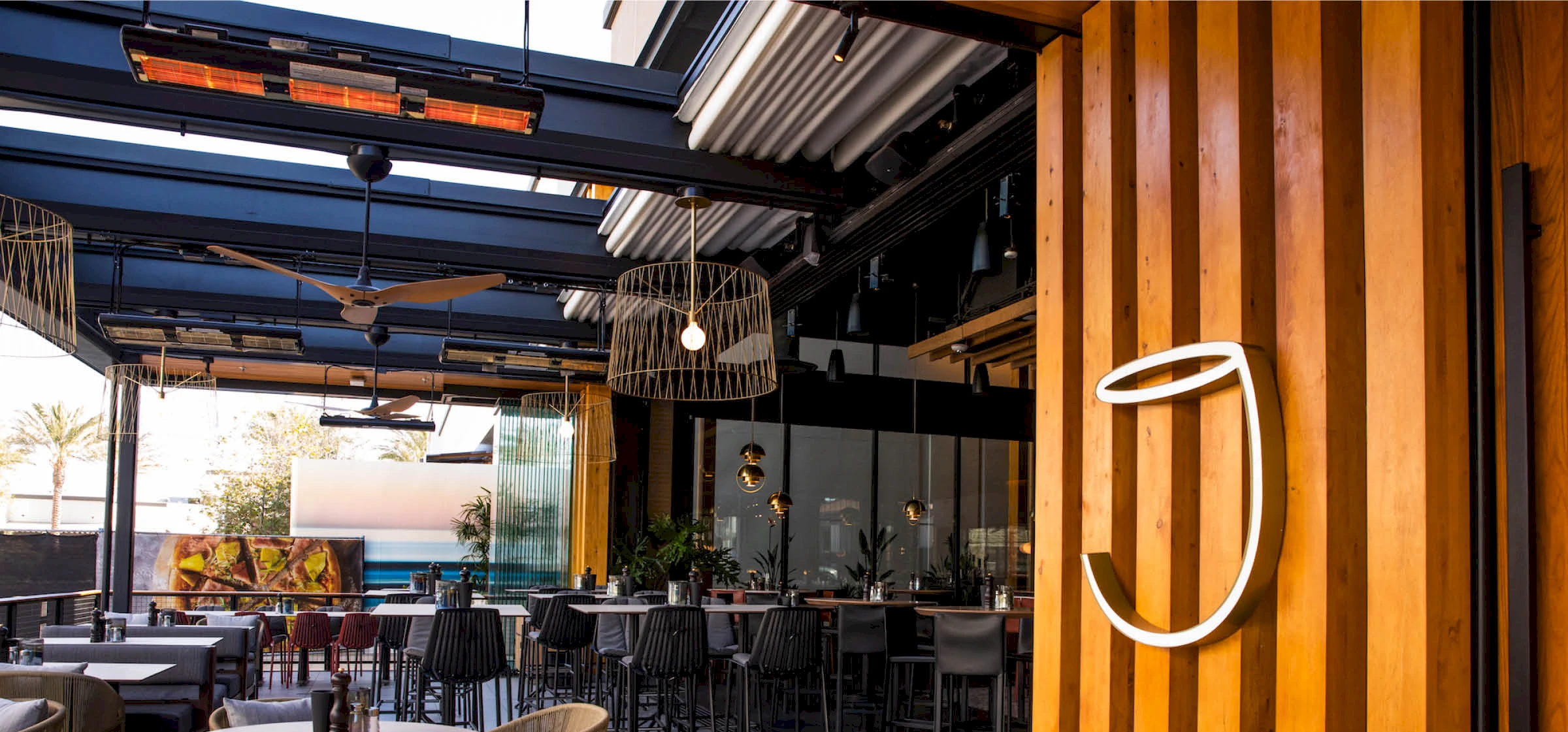

Alpha Series H3, Radiant Heater, Joey’s Restaurant, Manhattan Beach, CA
Image attribution:

Solaira, Alpha Series, H3, Joey’s Restaurant, Manhattan Beach, CA

Alpha Series Radiant Heater - Alpha Series

Next evolution of infrastructure grade, architectural, engineered radiant heaters for indoor and outdoor environments.

Alpha series heaters produce short wavelength infrared heat—86% of consumed energy is transferred into instant, controllable, directional heat. Shortwave infrared heating technology is not affected by wind and warms people and objects. The modular design of the Alpha series allows engineers to adjust and direct specified heating loads based on area requirements.

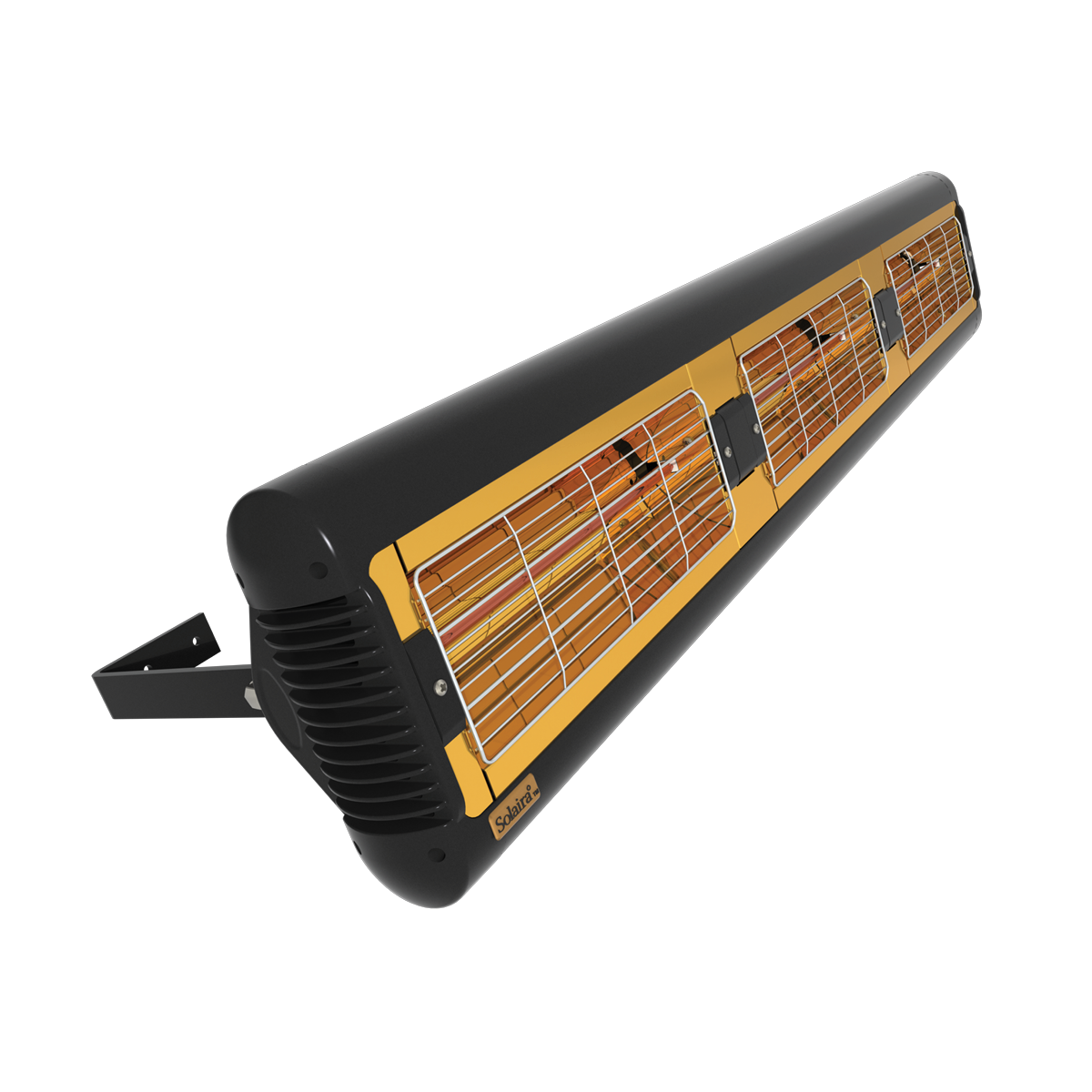

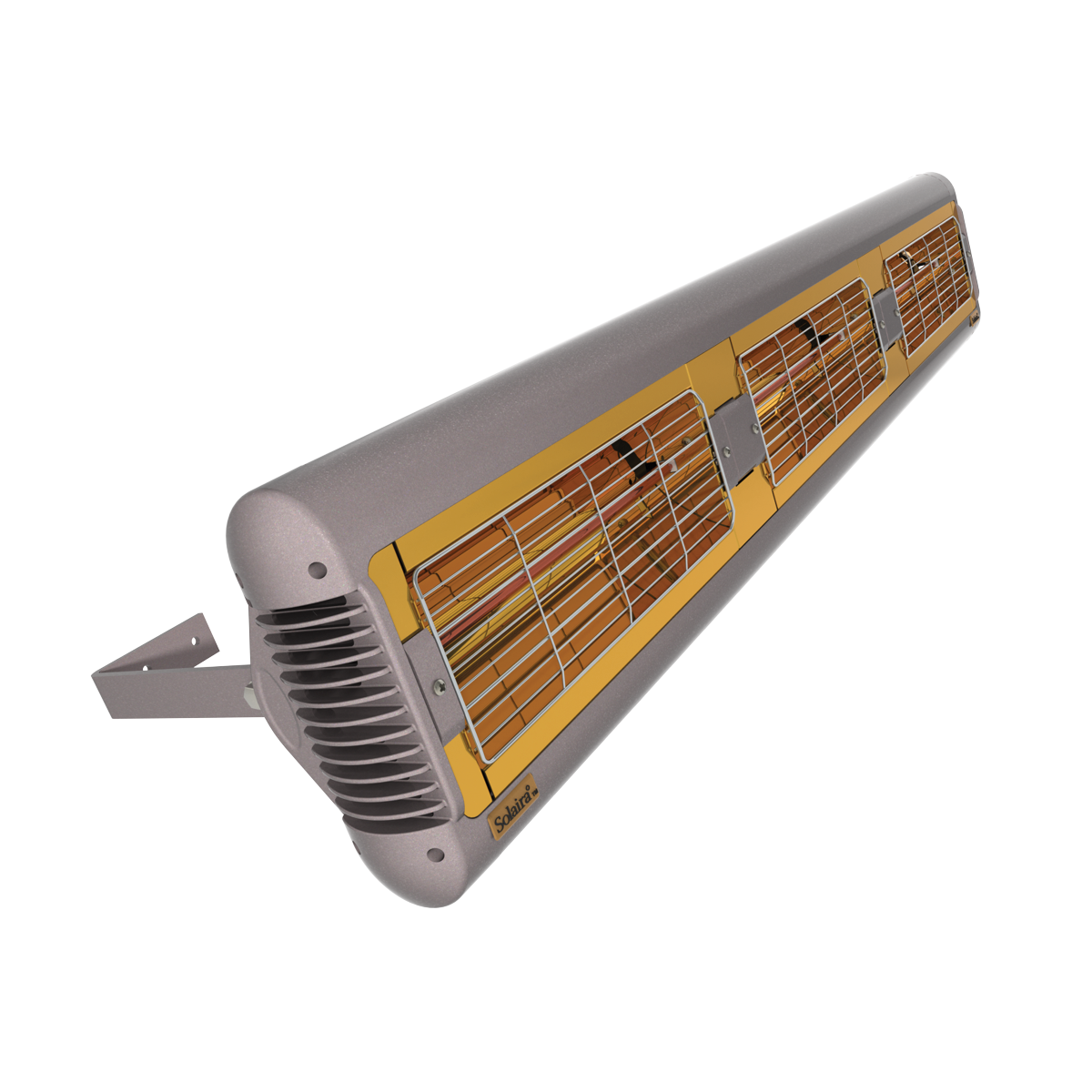

Alpha H3 | 4500 - 6000W

4500 / 6000W
  • Commercial grade
  • Powder coated aluminum body and mounting brackets, stainless steel fasteners
  • Indoor or outdoor rated for wet or dry conditions
  • Rain, snow and wind resistant
  • Modular design for engineered heat loads
  • 86% electrical energy conversion to delivered radiant heat
  • No direct CO2 or NOx emissions
  • 6.5" wall bracket included, ceiling bracket sold separately
Talk to Sales

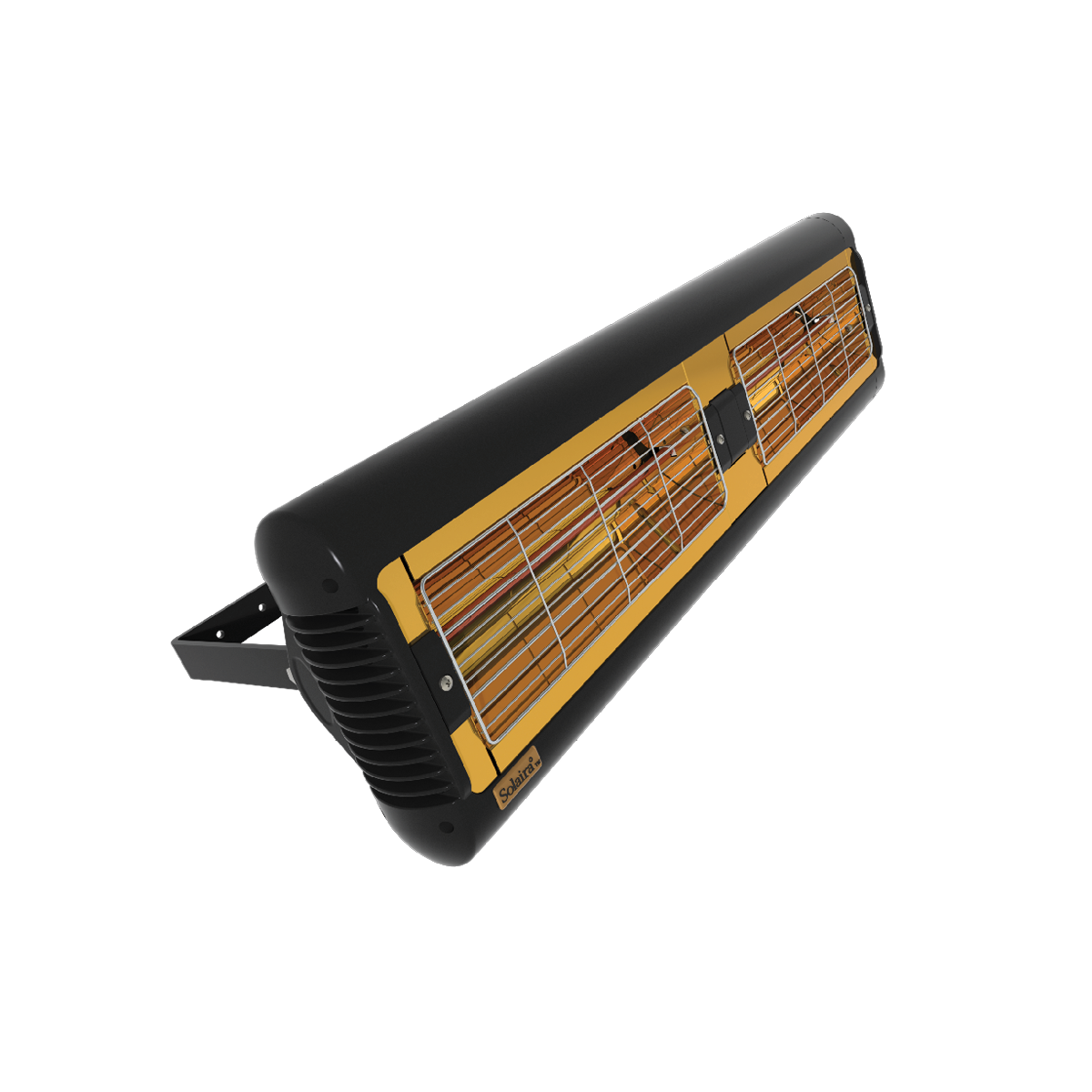

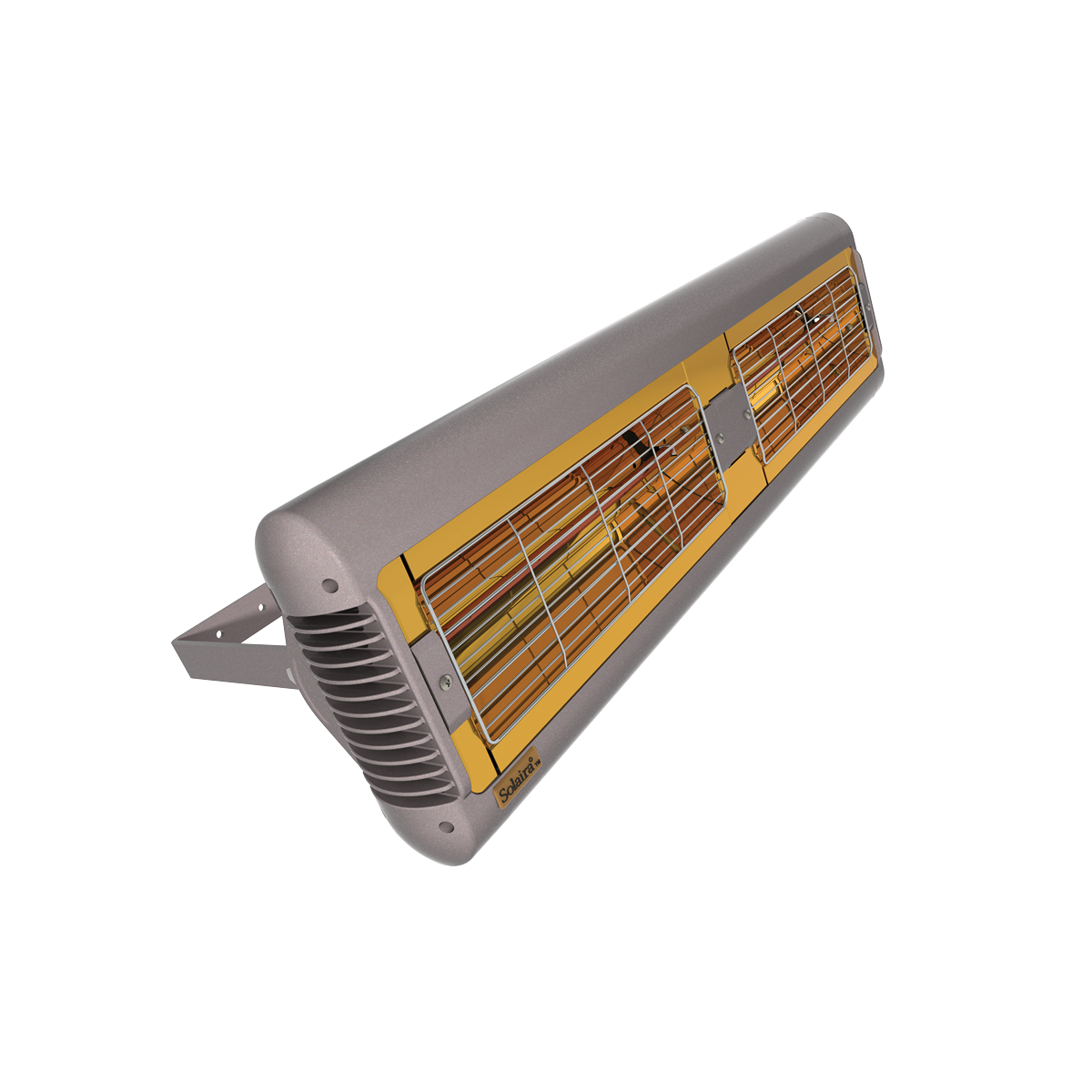

Alpha H2 | 3000 - 4000W

3000 / 4000W
  • Commercial grade
  • Powder coated aluminum body and mounting brackets, stainless steel fasteners
  • Indoor or outdoor rated for wet or dry conditions
  • Rain, snow and wind resistant
  • Modular design for engineered heat loads
  • 86% electrical energy conversion to delivered radiant heat
  • No direct CO2 or NOx emissions
  • 6.5" wall bracket included, ceiling bracket sold separately
Talk to Sales

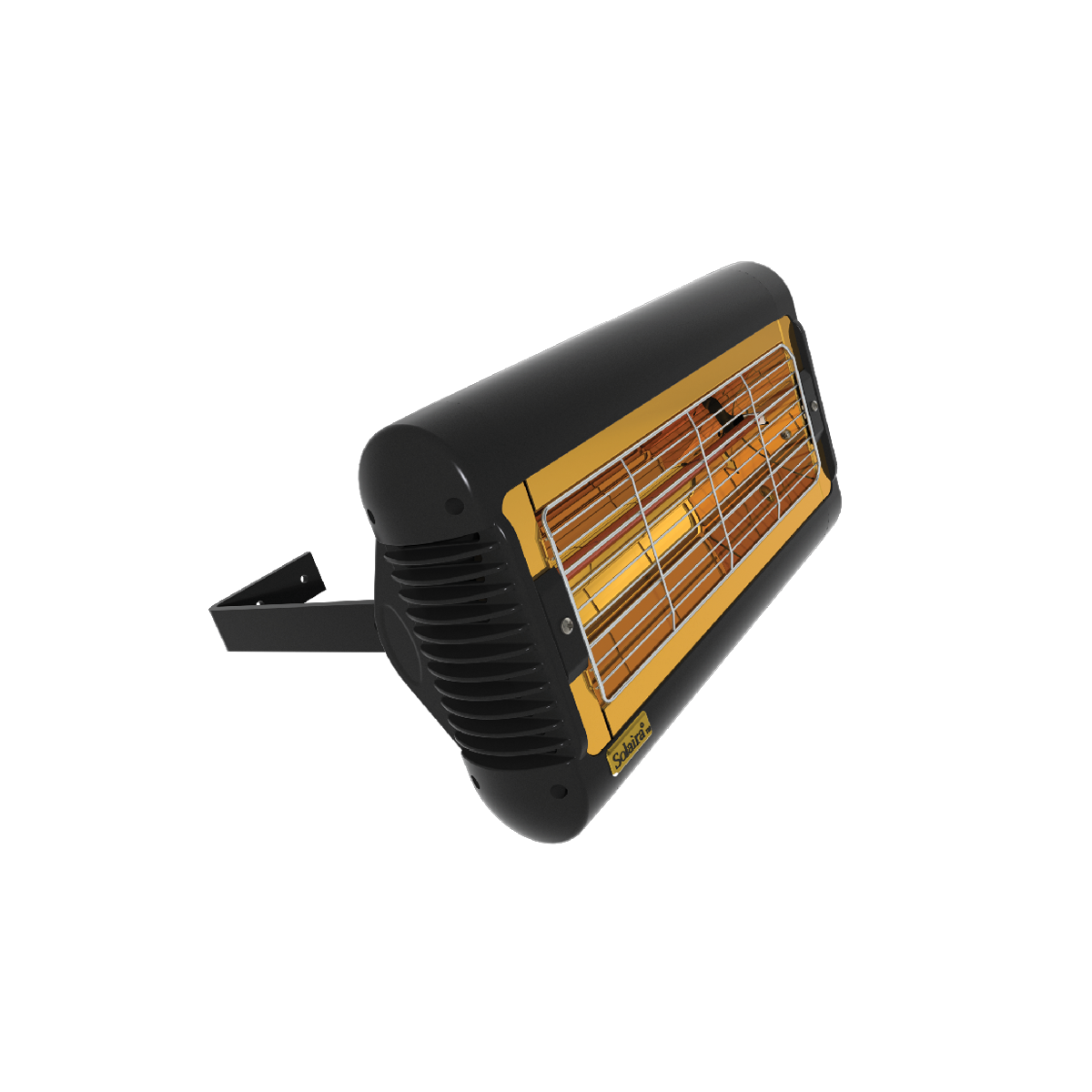

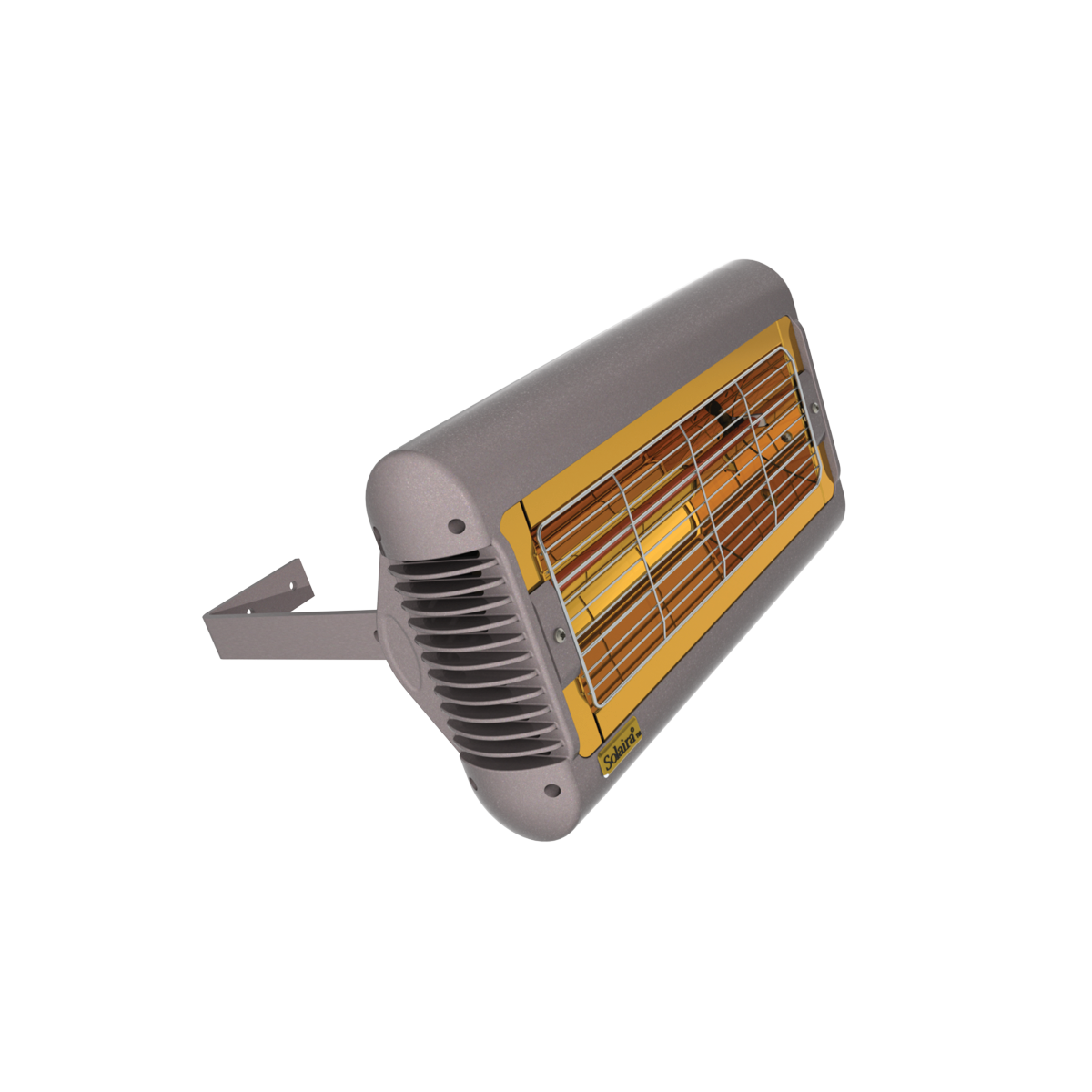

Alpha H1 | 1500 - 2000W

1500 / 2000W
  • Commercial grade
  • Powder coated aluminum body and mounting brackets, stainless steel fasteners
  • Indoor or outdoor rated for wet or dry conditions
  • Rain, snow and wind resistant
  • Modular design for engineered heat loads
  • 86% electrical energy conversion to delivered radiant heat
  • No direct CO2 or NOx emissions
  • 6.5" wall bracket included, ceiling bracket sold separately
Talk to Sales

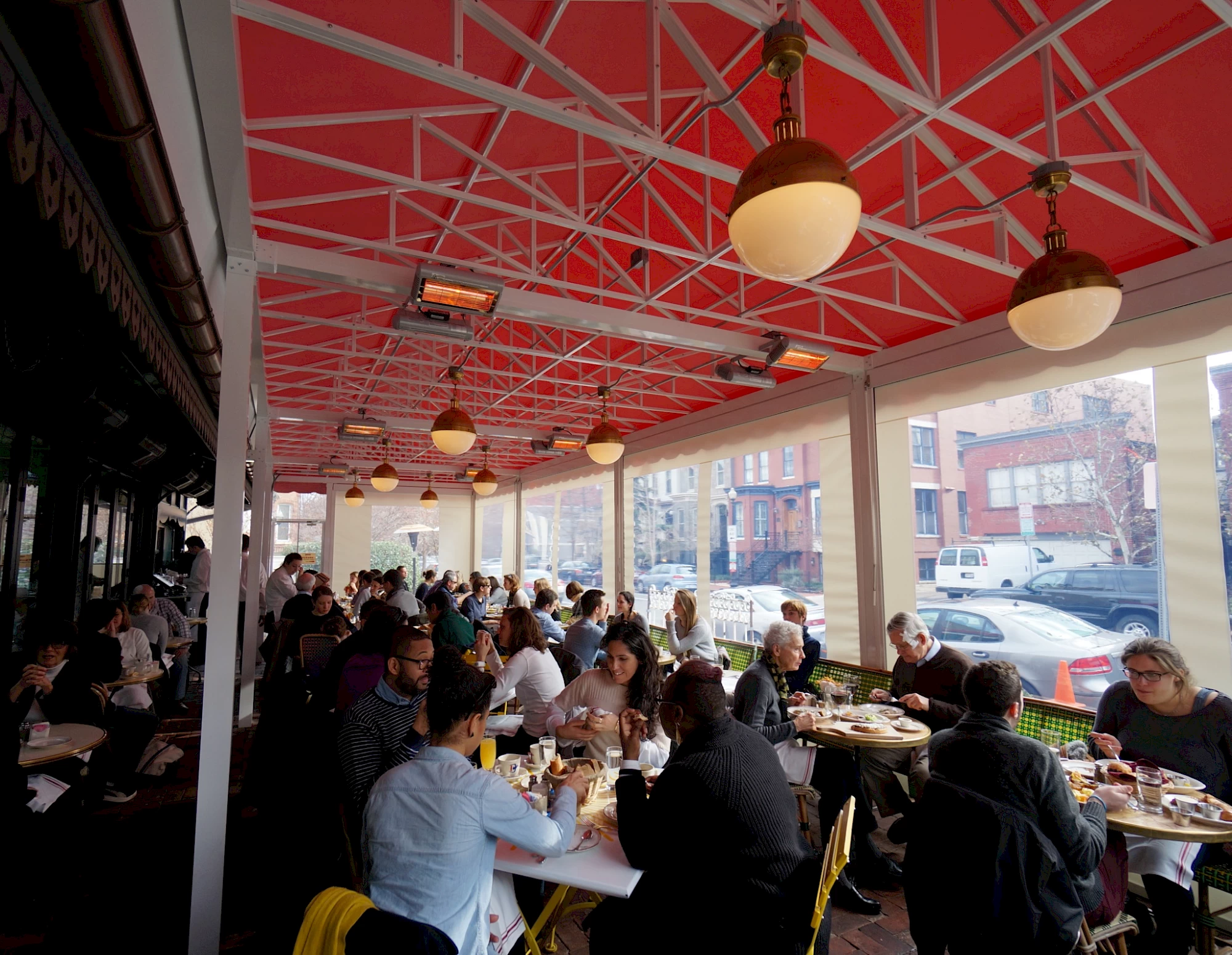

XL Alpha Series H1, Radiant Heater, Le Diplomate, Washington, DC
Image attribution:

Solaira, Alpha Series, H1, Le Diplomate, Washington, DC

Installation Flexibility

Clean lines for any environment

The Solaira Alpha Series infrared heater gives you the ability to wall mount or ceiling suspend, providing greater design flexibility while maximizing heater coverage area. Three form sizes of heaters with output up to 6000W allows engineers to evenly distribute heater loads while architects and designers can integrate perfectly.

Alpha Series H2, Radiant Heater, Black Mountain, Jackson, NH
Image attribution:

Solaira, Alpha Series, H2, Black Mountain, Jackson, NH

Infrastructure Grade, High Output

Engineered for commercial and industrial applications

The modular design of the Solaira Alpha Series allows specifying engineers to adjust and direct specified heating loads based on area requirements. High mounting hights and open exposed outdoor areas are not a problem for Solaira IP55 outdoor exposed rated Alpha Alpha series heaters. Available in standard RALl9006 Antique Grey or RAL 9005 Black.

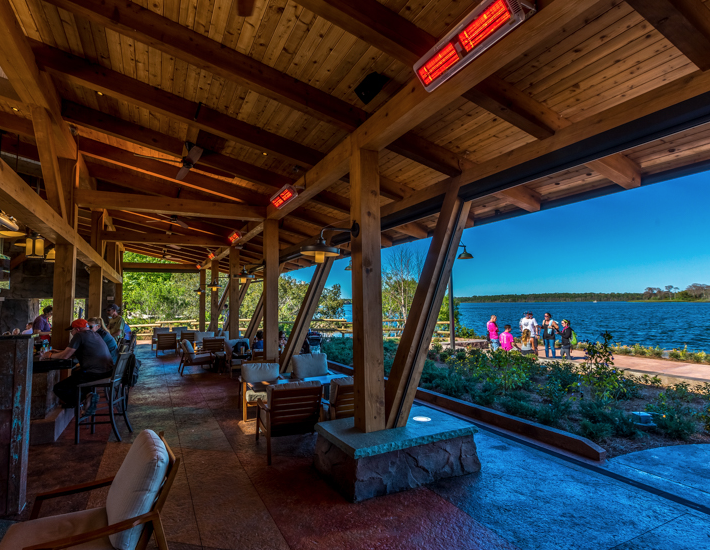

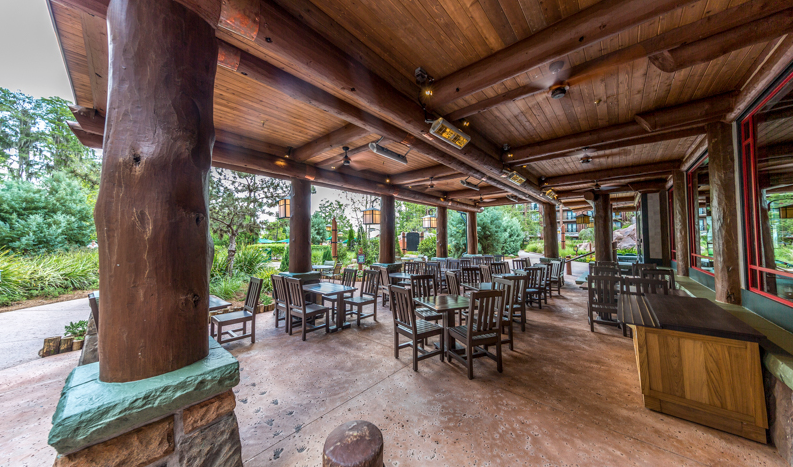

Alpha Series H2, Radiant Heater, Disney Wilderness Lodge, Orlando, FL
Image attribution:

Solaira, Alpha Series, H2, Disney Wilderness Lodge, Orlando, FL

Quality Construction

Reliable, efficient and effective

A high output, modular design with outputs varying from 1500 to 18,000W at 120, 208, 240 or 277V. Manufactured from extruded and cast aluminum with UV-resistant polyester powder coating, and assembled with stainless steel fasteners. Available with 4th generation ultra-low glare quartz tungsten, filtered short wave emitters. Up to 8000-hour emitter life.

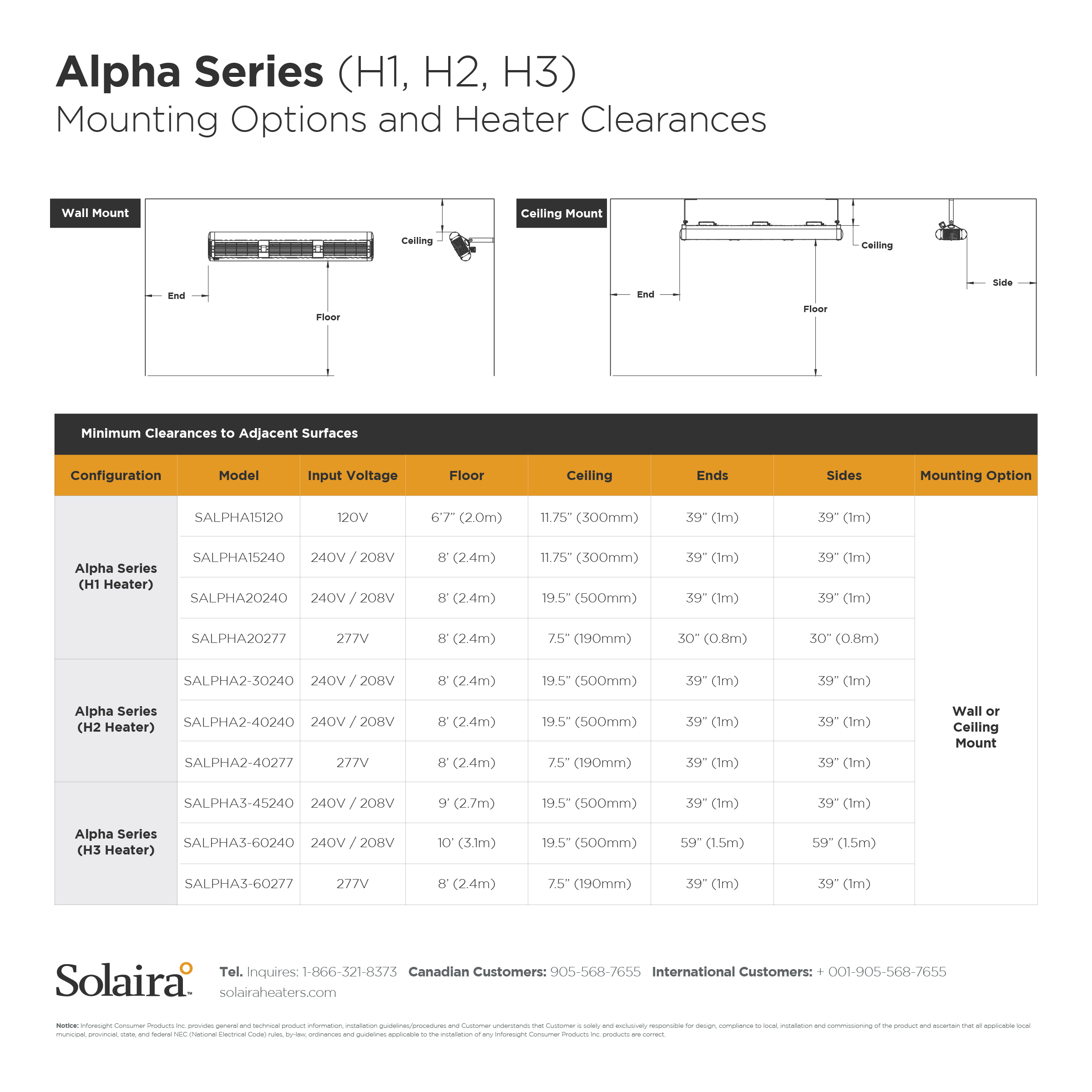

Technical Detail

ModelFormPower
(watts)
BTU'sVoltageAmperageWeightClearances
(minimum)
Replacement Emitter
SALPHA3-60240L1
[G/B]
H36000 / 450020,460 / 15,345240 / 208 25.0 / 21.6 17.6lbs / 8.0kg
Floor:
10' / 3.1m
Ceiling:
19.5" / 0.5m
Wall:
59" / 1.5m
SWIRE20240-L1
SALPHA3-60277
[G]
H3600020,46027721.717.6lbs / 8.0kg
Floor:
8' / 2.4m
Ceiling:
7.5" / 0.19m
Wall:
39" / 1m
SWIRE20277
SALPHA3-45240L1
[G/B]
H34500 / 337515,345 / 11,509 240 / 20818.8 / 16.217.6lbs / 8.0kg
Floor:
9' / 2.7m
Ceiling:
19.5" / 0.5m
Wall:
39" / 1m
SWIRE15240-L1
SALPHA2-40240L1
[G]
H24000 / 300013,640 / 10,230240 / 20816.7 / 14.412.3lbs / 5.6kg
Floor:
8' / 2.4m
Ceiling:
19.5" / 0.5m
Wall:
39" / 1m
SWIRE20240-L1
SALPHA2-40277
[G]
H2400013,64027714.412.3lbs / 5.6kg
Floor:
8' / 2.4m
Ceiling:
7.5" / 0.19m
Wall:
39" / 1m
SWIRE20277
SALPHA2-30240L1
[G/B]
H23000 / 2250 10,230 / 7673240 / 20812.5 / 10.812.3lbs / 5.6kg
Floor:
8' / 2.4m
Ceiling:
19.5" / 0.5m
Wall:
39" / 1m
SWIRE15240-L1
SALPHA20240L1
[G]
H12000 / 15006,820 / 5,115240 / 2088.3 / 7.27.5lbs / 3.4kg
Floor:
8' / 2.4m
Ceiling:
19.5" / 0.50m
Wall:
39" / 1m
SWIRE20240-L1
SALPHA20277
[G]
H120006,8202777.27.5lbs / 3.4kg
Floor:
8' / 2.4m
Ceiling:
7.5" / 0.19m
Wall:
30" / 0.8m
SWIRE20277
SALPHA15240L1
[G]
H11500 / 11255,115 / 3,836240 / 2086.3 / 5.47.5lbs / 3.4kg
Floor:
8' / 2.4m
Ceiling:
11.75" / 0.30m
Wall:
39" / 1m
SWIRE15240-L1
SALPHA15120
[G]
H115005,11512012.57.5lbs / 3.4kg
Floor:
6'7" / 2.0m
Ceiling:
11.75" / 0.30m
Wall:
39" / 1m
SWIRE15120

Take control of your heat simply and easily with our advanced controllers and sensors.
See Controllers

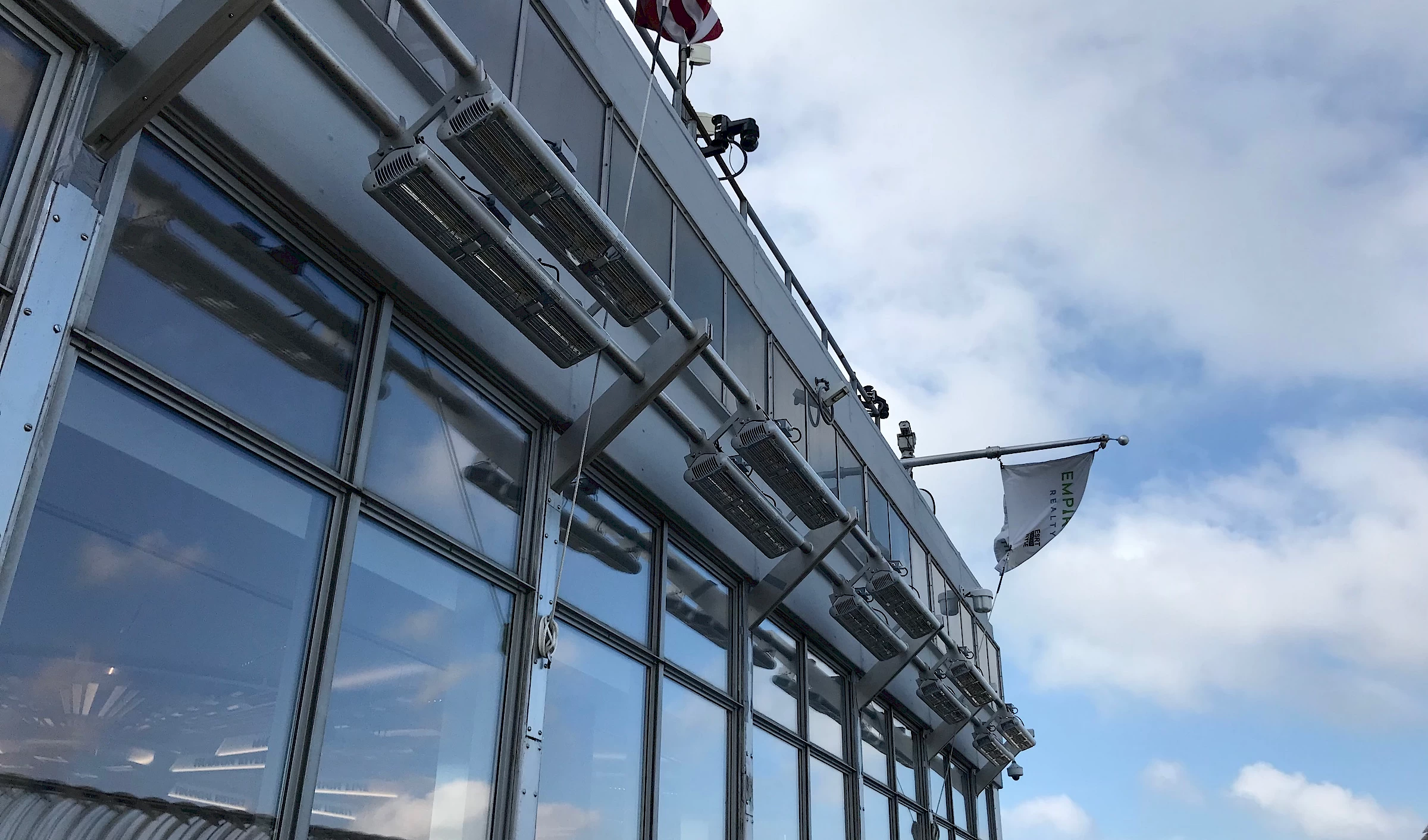

Alpha Series H3, Empire State Building, New York, NY
Image attribution:

Solaira, Alpha Series, H3, Empire State Building, New York, NY

Alpha Series H2, Disney World Lodge, Orlando, FL
Image attribution:

Solaira, Alpha Series, H2, Disney World Lodge, Orlando, FL

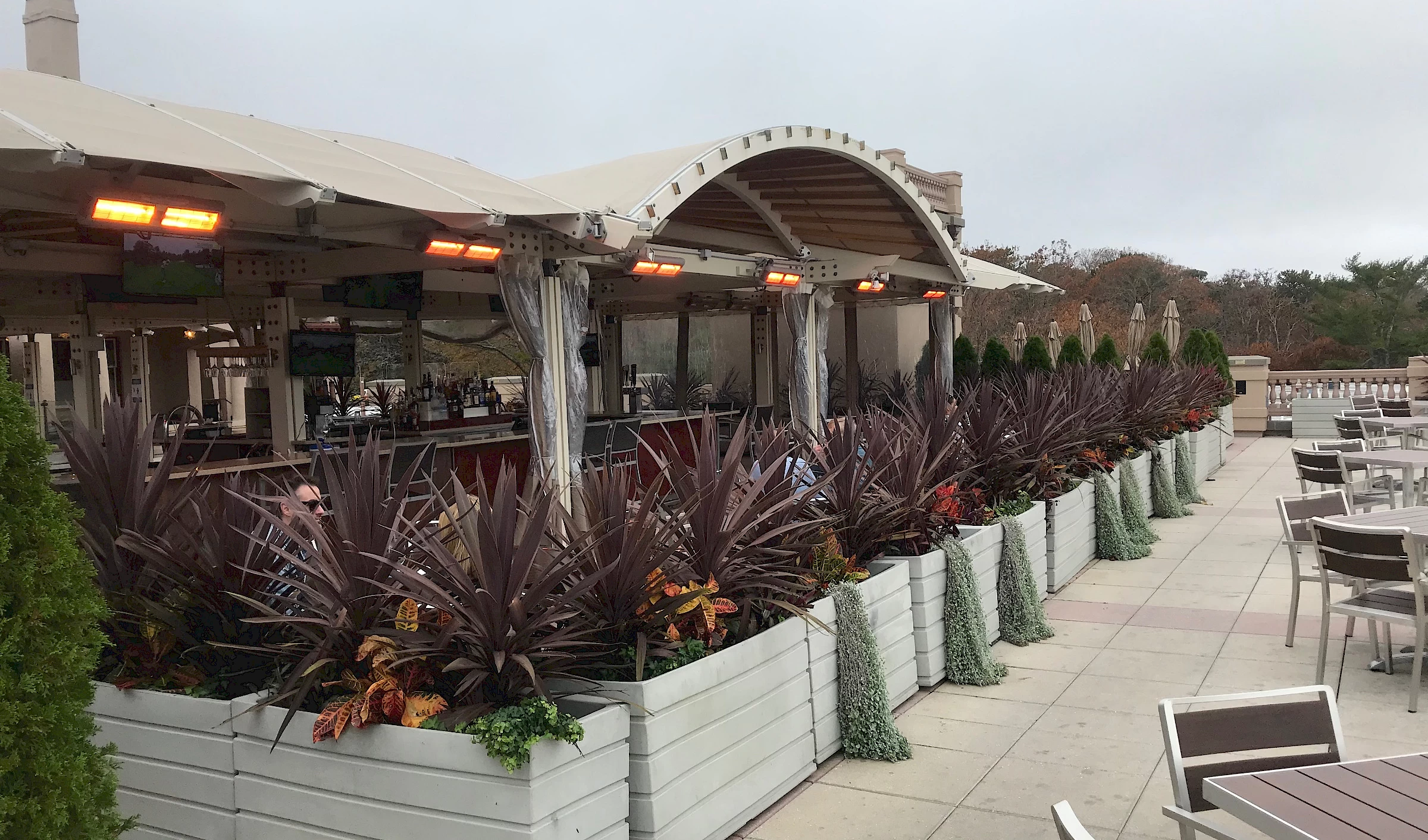

Alpha Series H2, Radiant Heater, Ocean Edge Resort & Golf Club, Brewster, MA
Image attribution:

Solaira, Alpha Series, H2, Ocean Edge Resort & Golf Club, Brewster, MA

Similar Products

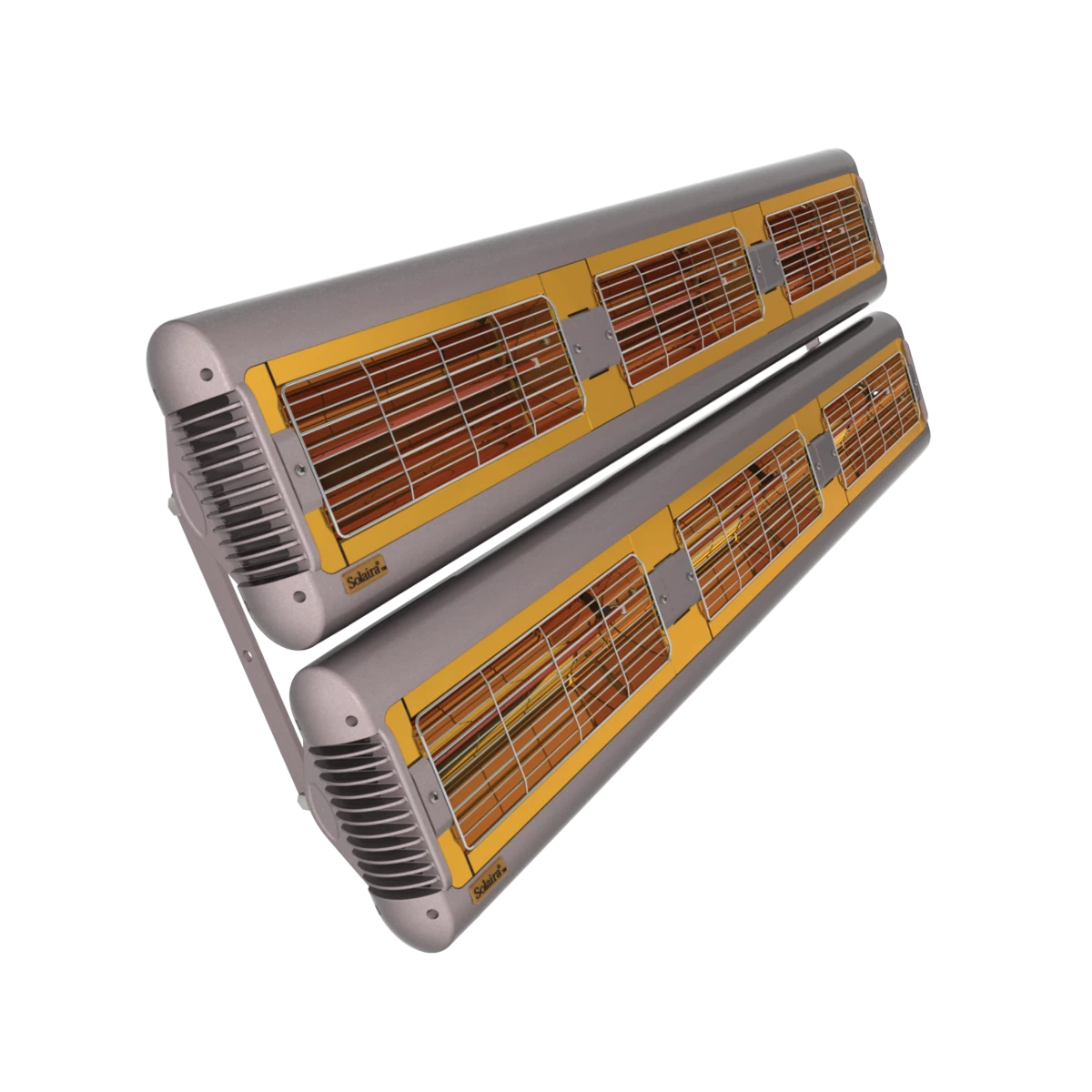

Industrial Series Radiant Heater
