ICR Series H3, Recess Radiant Heater, Water Grill Restaurant, San Jose, CA
Image attribution:

Solaira, ICR Recess Heater Series, Water Grill Restaurant, San Jose, CA

ICR Series Recess Heater - ICR Series

Our high efficiency, high performance wall, ceiling and recess outdoor patio heater

ICR Series heaters produce light filtered, short-wave infrared heat, with conversion of over 86% of energy into instant, controllable, directional heat. Virtually unaffected by air current or breezes, radiant heat warms people and objects, not the surrounding air. The ICR Series heaters can be recess (flush mounted), ceiling or wall mounted with low ceiling clearances. Available in RAL9006 Black or RAL9002 White or any custom colour to suit our architectural needs.

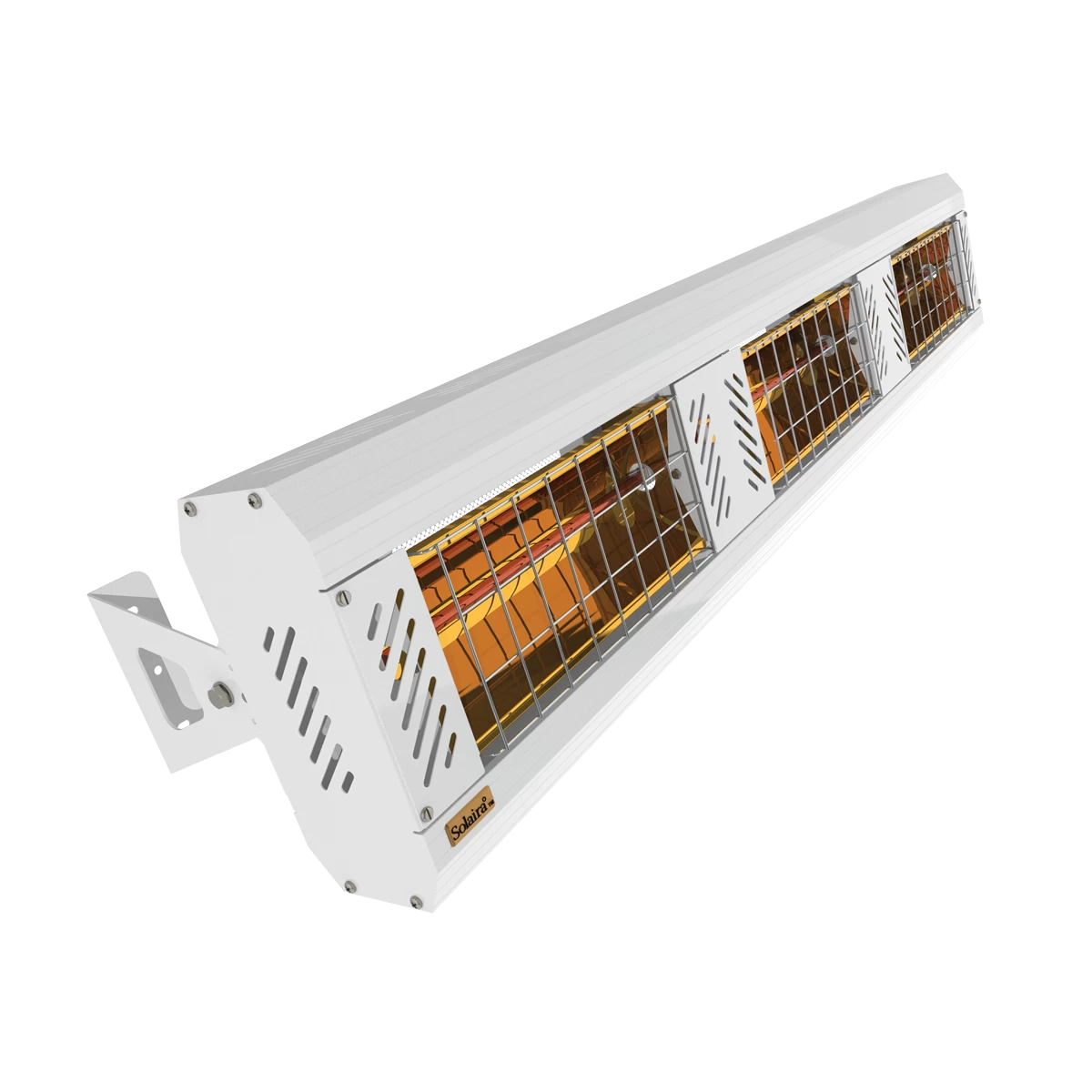

ICR infrared electric three element heater in white

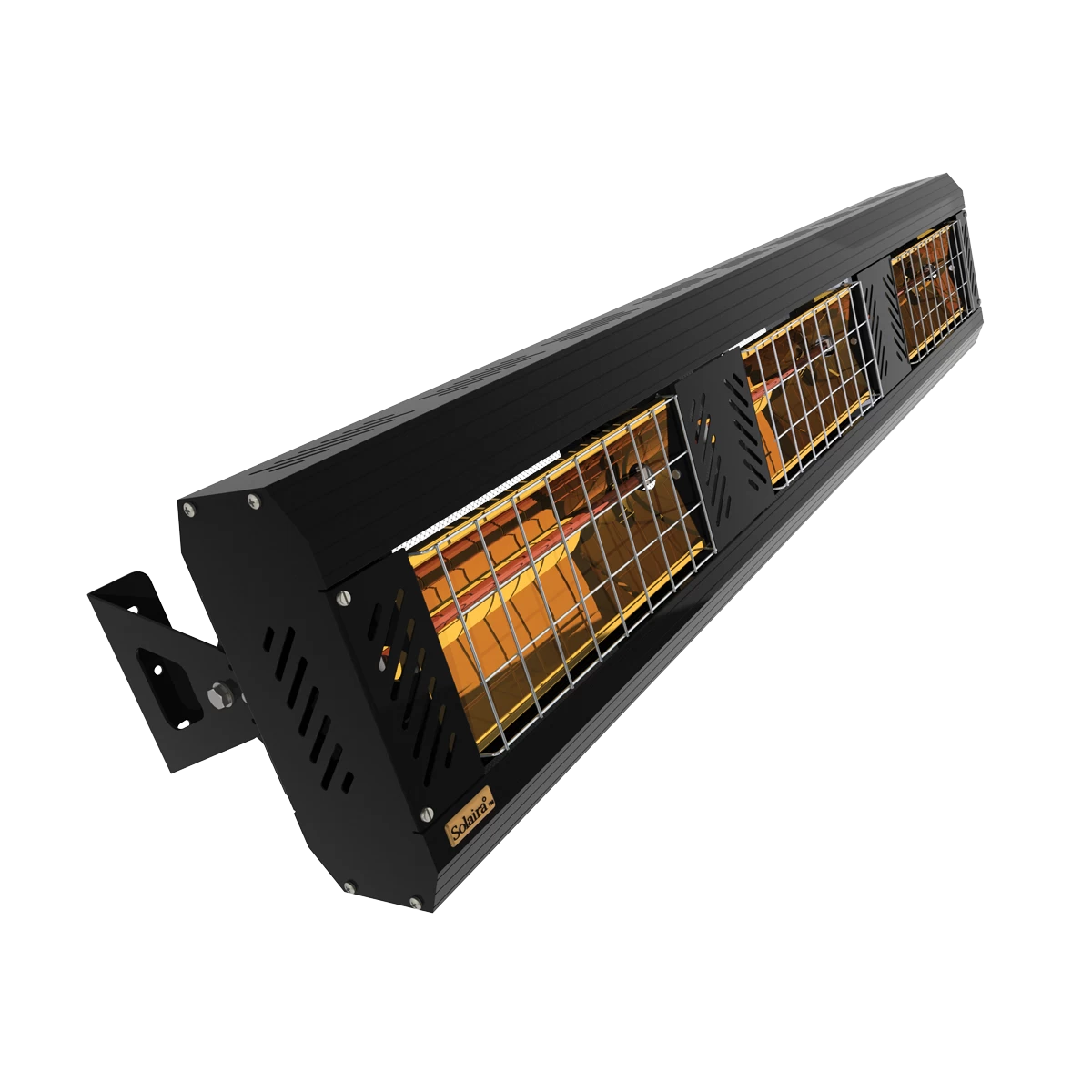

ICR H3 | 4500 - 6000W

4500 - 6000W
  • Commercial grade
  • Recess or flush mount (integrated) installation
  • Powder coated aluminum body and mounting brackets, stainless steel fasteners
  • Indoor or outdoor rated for wet or dry conditions
  • Rain, snow and wind resistant
  • 86% electrical energy conversion to delivered radiant heat
  • No direct CO2 or NOx emissions
  • 6" bracket included for wall, ceiling or recessed installation
Talk to Sales

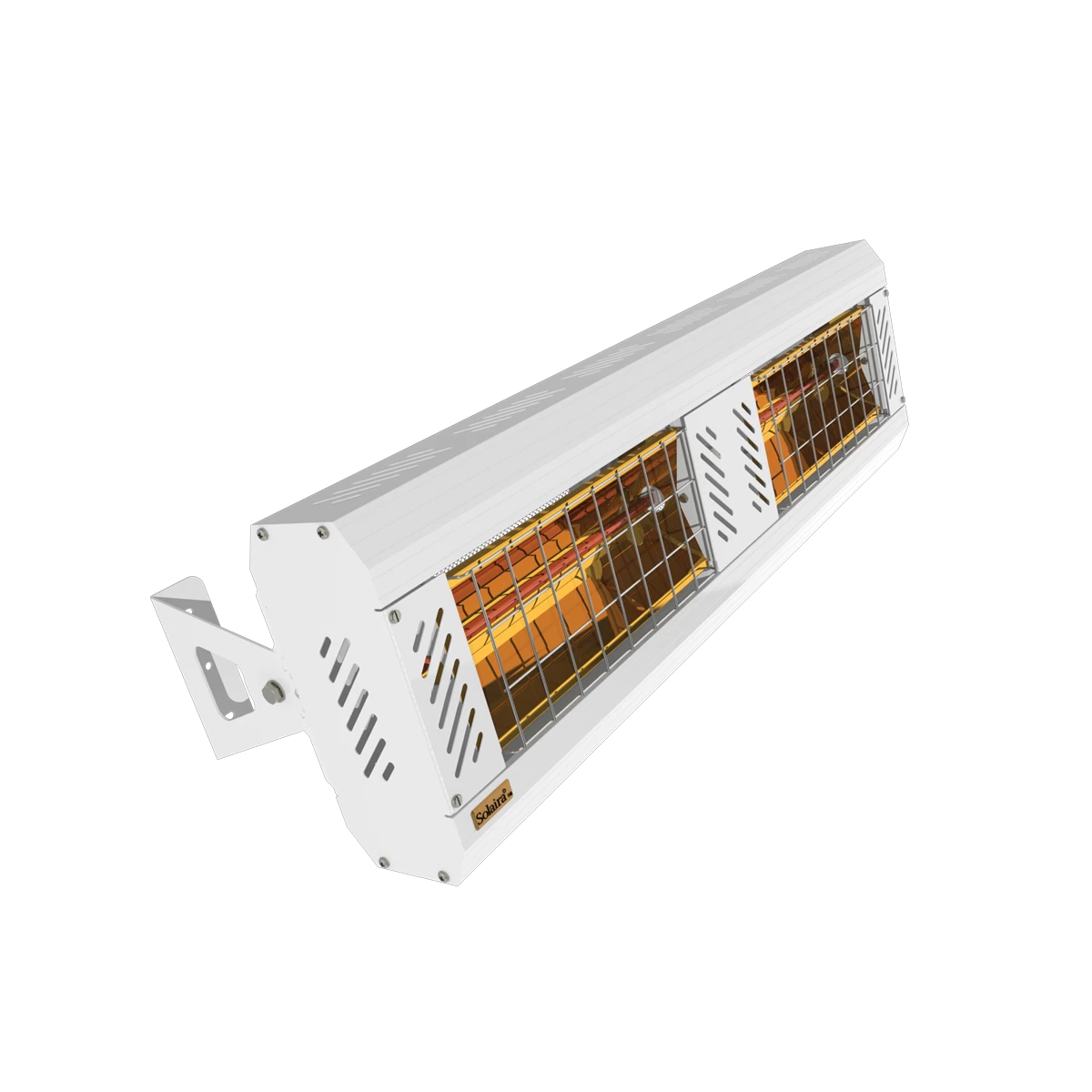

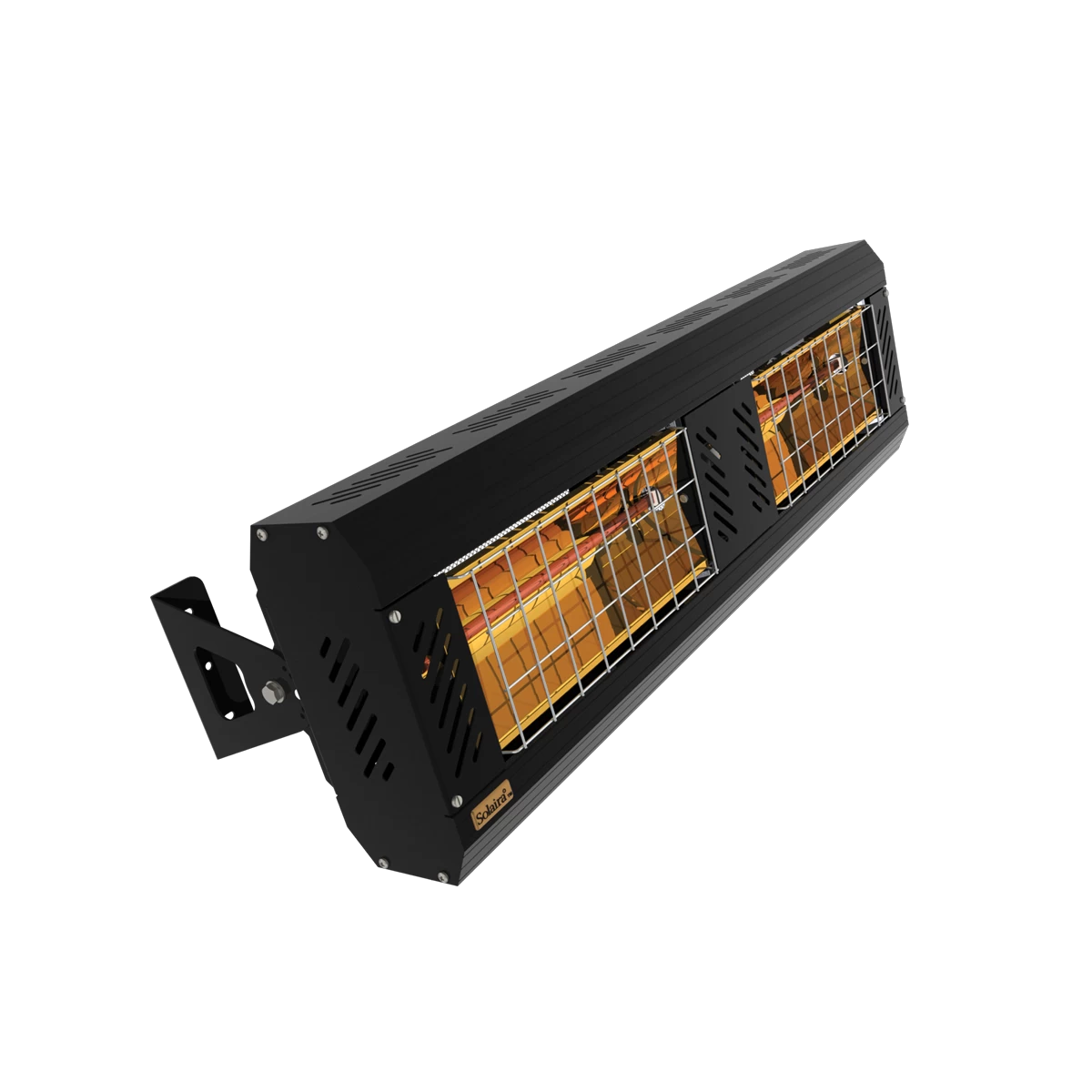

ICR H2 | 3000 - 4000W

3000 – 4000W
  • Commercial grade
  • Recess or flush mount (integrated) installation
  • Powder coated aluminum body and mounting brackets, stainless steel fasteners
  • Indoor or outdoor rated for wet or dry conditions
  • Rain, snow and wind resistant
  • 86% electrical energy conversion to delivered radiant heat
  • No direct CO2 or NOx emissions
  • 6" bracket included for wall, ceiling or recessed installation
Talk to Sales

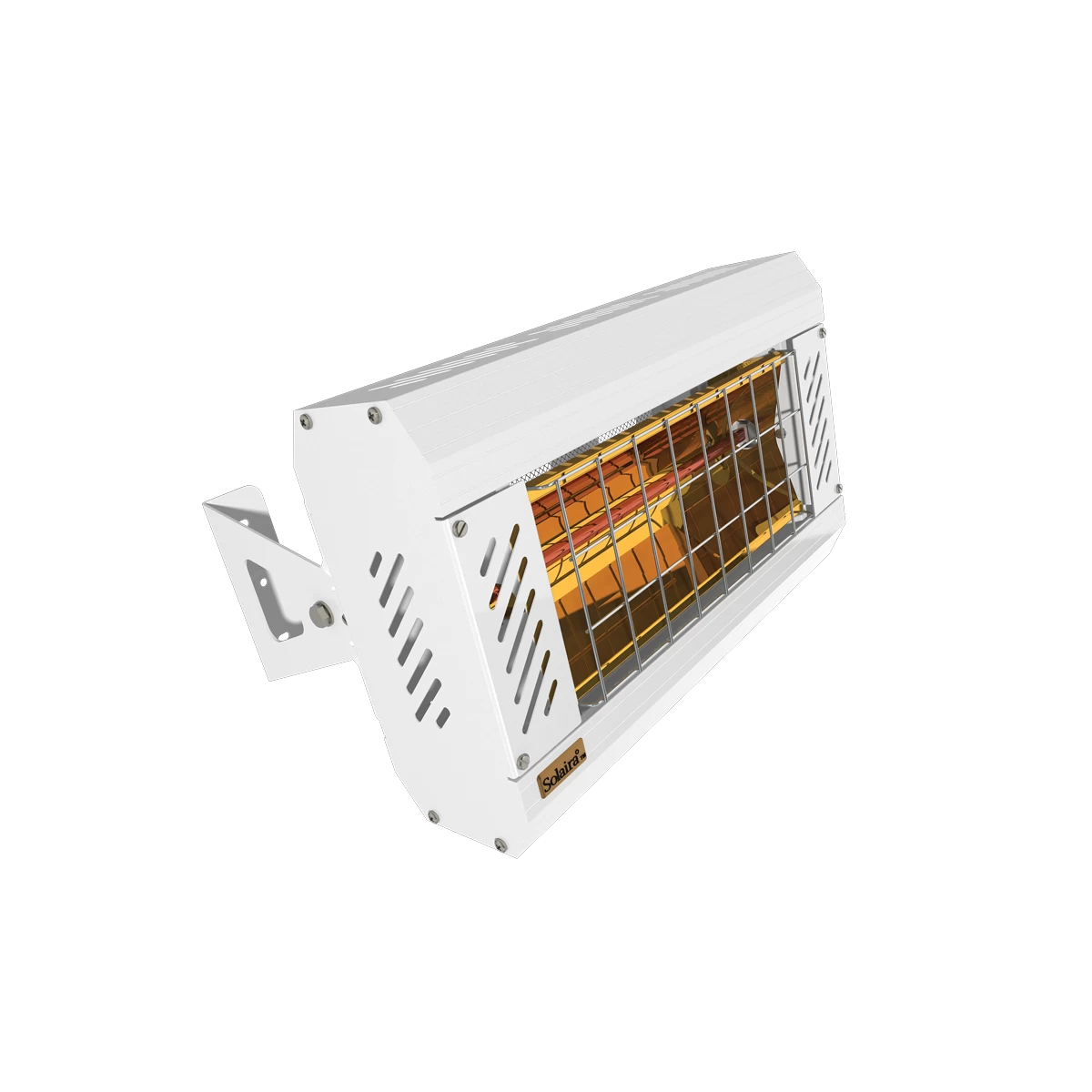

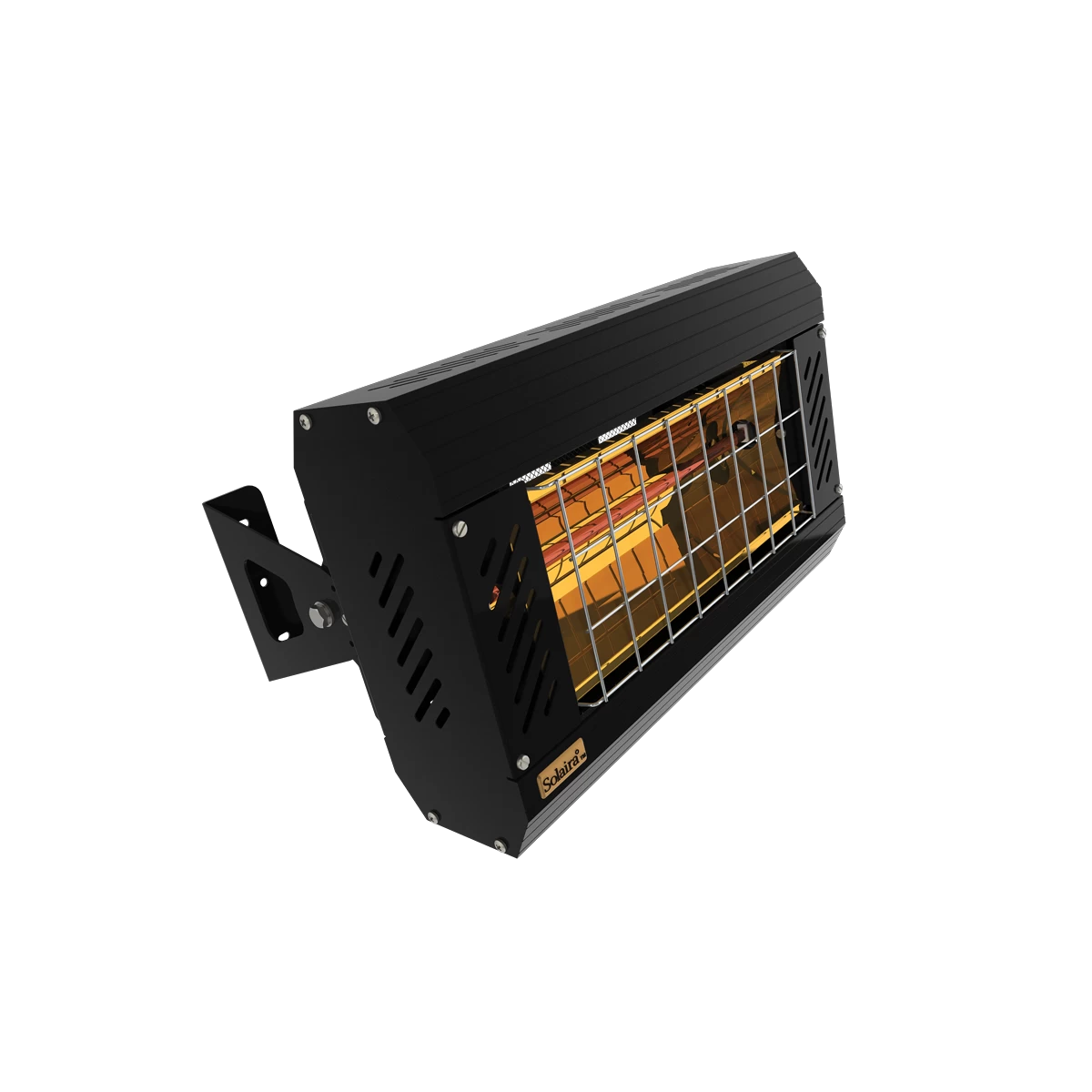

ICR H1 | 2000W

2000W
  • Commercial grade
  • Recess or flush mount (integrated) installation
  • Powder coated aluminum body and mounting brackets, stainless steel fasteners
  • Indoor or outdoor rated for wet or dry conditions
  • Rain, snow and wind resistant
  • 86% electrical energy conversion to delivered radiant heat
  • No direct CO2 or NOx emissions
  • 6" bracket included for wall, ceiling or recessed installation
Talk to Sales
ICR Series, H2, Radiant Recess Heater, Residential Application
Image attribution:

Solaira, ICR Series, H2, Residential Recess Application

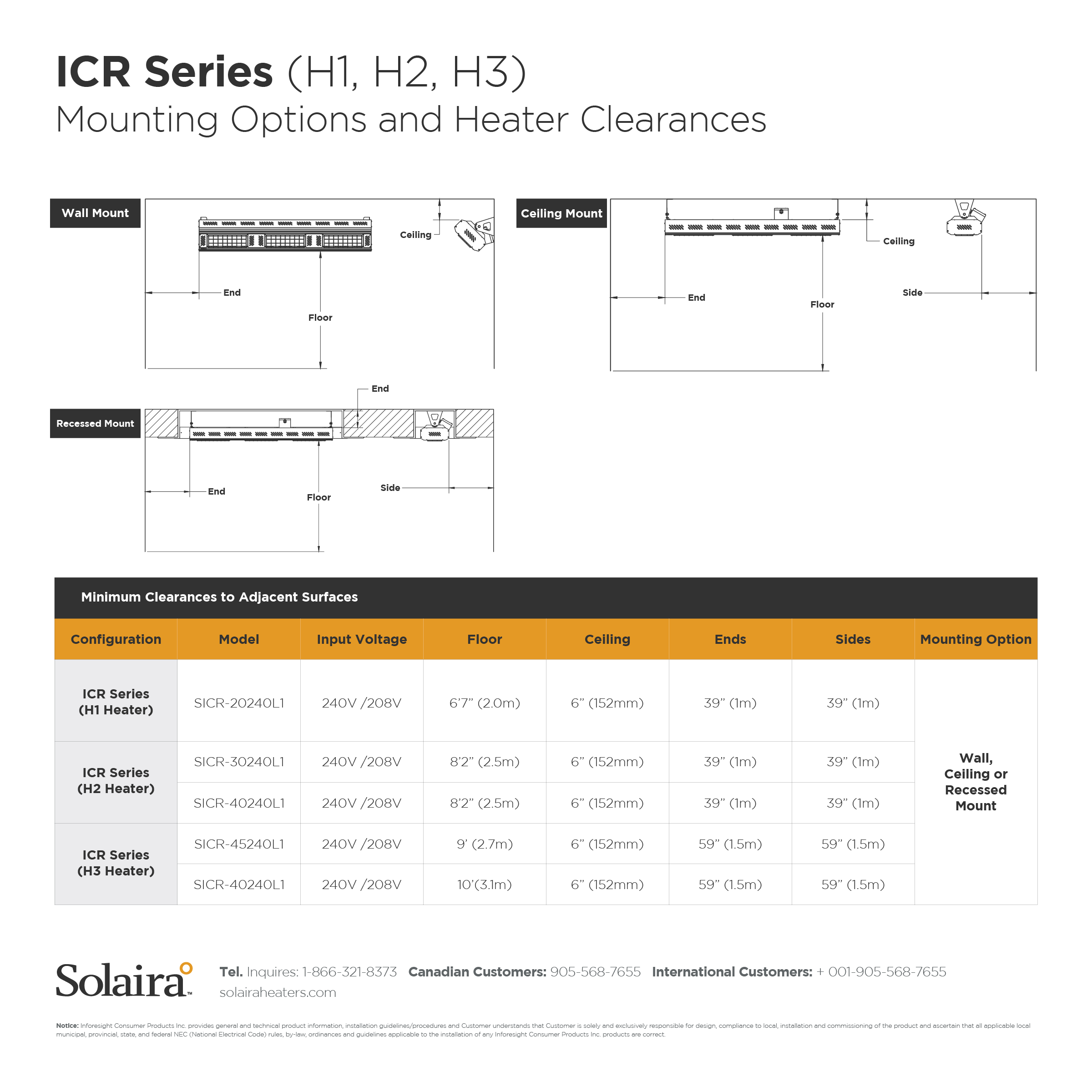

Integrated Mounting Options

Ceiling recess outdoor heater

The Solaira ICR Series infrared heater provides you with a variety of mounting options. Ceiling recess heater installation has long been a favorite option among designers, architects and engineers working on today’s most design forward commercial and residential properties. With the smallest recessed box dimensions in the industry, installing heaters in ceiling recess maintains a clean, integrated look. The ability to wall mount or direct ceiling mount are also available, providing greater design flexibility to optimize heater coverage area. ICR heaters and matching trim kits are available in RAL9005 Black, RAL9002 White or custom colour to suit.

ICR Series H3, Recessed Radiant Heater, Jimmy's Restaurant, Santa Monica, CA
Image attribution:

Solaira, ICR Series, H3, Jimmy's Restaurant, Santa Monica, CA

Low Clearance, integrated

Create a clean streamlined look

The Solaira ICR Series commercial heaters offer low ceiling clearance requirements when mounted using the included mounting brackets clearance is a minimal 6˝. Take advantage of the recessed heater installation option with matching trim kit for commercial and restaurant outdoor applications.

ICR Series H2, Radiant Heater, Envoy Marriott rooftop Hotel, Boston, MA
Image attribution:

Solaira, ICR Series, H2, Envoy Marriot Hotel, Outdoor Rooftop Bar Boston, MA

Quality Construction

Built to endure the elements

Manufactured from 6000 series extruded aircraft Aluminum with UV resistant polyester powder coating and a IP55 weather-proof rating, the ICR Series is built to endure the elements. Combined with all stainless steel hardware and mirror-polished aluminum reflectors, the ICR series is designed with long life and performance in mind.

Technical Details

ModelFormPower
(watts)
BTU'sVoltageAmperageWeightClearances
(minimum)
Replacement Emitter
SICR-60240L1
[B/W]
H36000 / 450020,460 / 15,345240 / 20825 / 21.617.6lbs / 8.0kg
Floor:
10' / 3.1m
Ceiling:
6" / 0.15m
Wall:
59" / 1.5m
IWIRE20240L1
SICR-45240L1
[B]
H34500 / 337515,345 / 11,509240 / 20818.8 / 16.217.6lbs / 8.0kg
Floor:
9' / 2.7m
Ceiling:
6" / 0.15m
Wall:
59" / 1.5m
IWIRE15240L1
SICR-40240L1
[B/W]
H24000 / 300013,640 / 10,230240 / 20816.7 / 14.413lbs / 6.0kg
Floor:
8'2" / 2.5m
Ceiling:
6" / 0.15m
Wall:
39" / 1m
IWIRE20240L1
SICR-30240L1
[B/W]
H23000 / 225010,230 / 7,673240 / 20812.5 / 10.813lbs / 6.0kg
Floor:
8'2" / 2.5m
Ceiling:
6" / 0.15m
Wall:
39" / 1m
IWIRE15240L1
SICR-20240L1
[B]
H12000 / 15006,820 / 5,115240 / 2088.3 / 7.26.6lbs / 3.0kg
Floor:
6'7" / 2.0m
Ceiling:
6" / 0.15m
Wall:
39" / 1m
IWIRE20240L1

ICR Heaters and trim kits are available in standard-B Black (RAL9005), custom RAL colors available
All models come in standard low glare emitter lamps, for Ultra-low glare, please see CANDEL Series (LL)

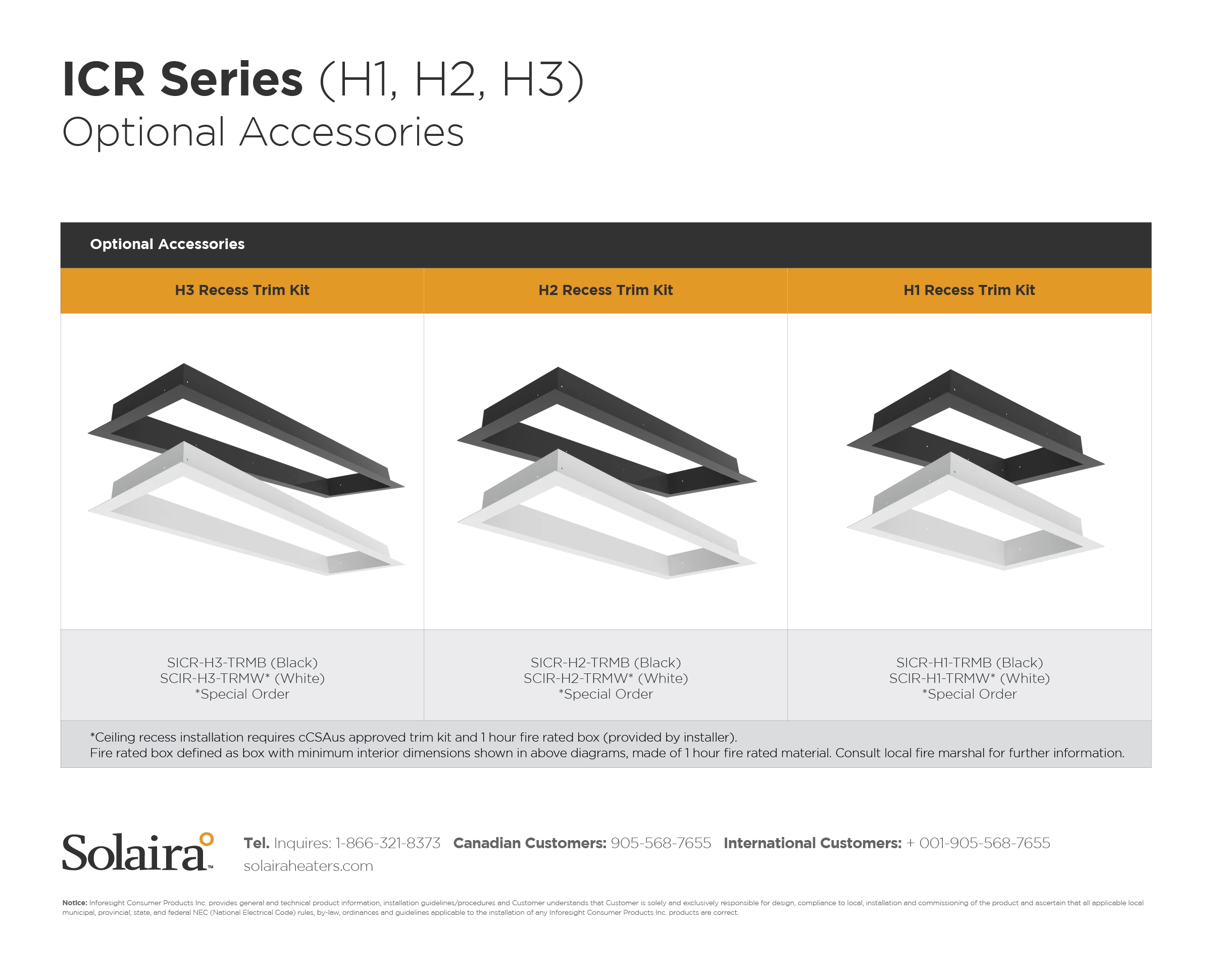

* Trim Kit required for integrated (recess or flush mount) application per cCSAus Instruction manual along with fire rated box provided by authorized contractor

Recess Heater for outdoor patio environments

Take control of your heat simply and easily with our advanced network controllers and sensors.

See Controllers

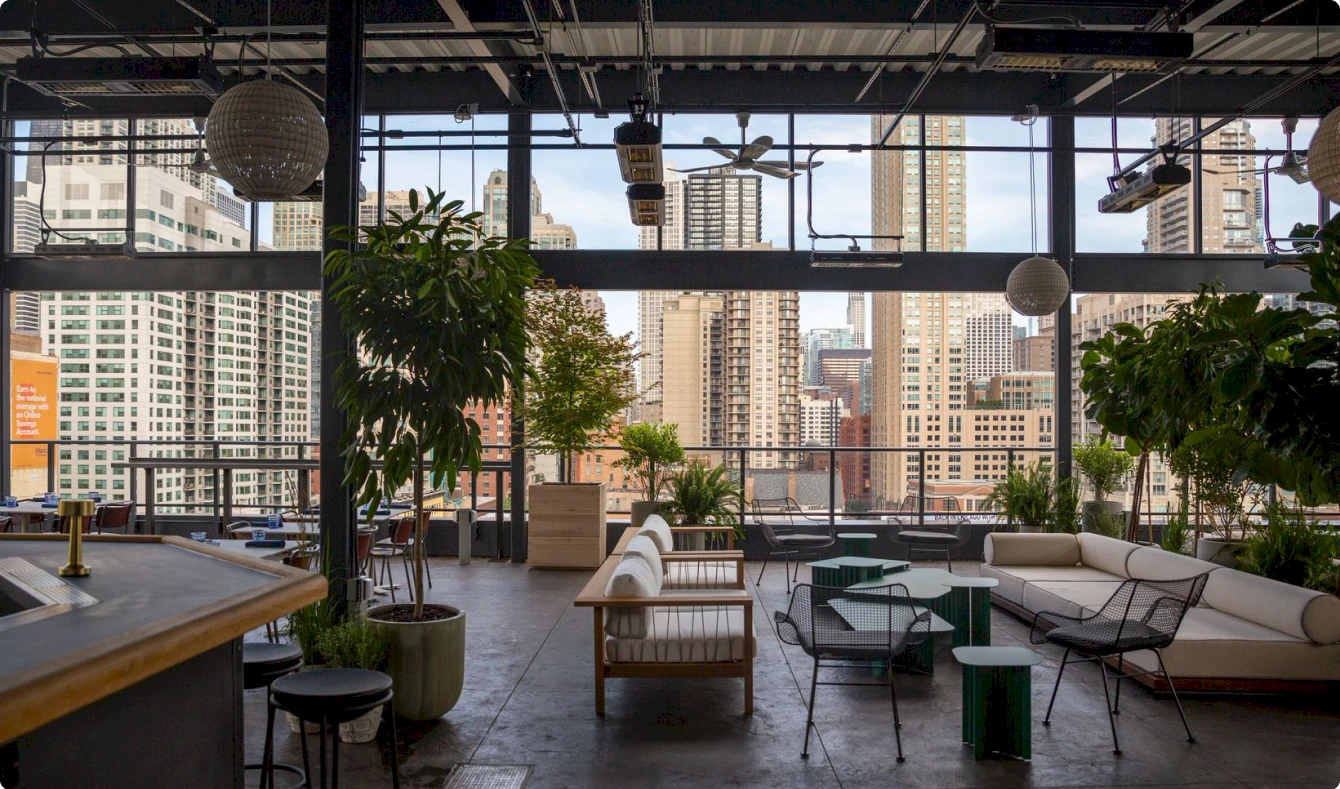

ICR Series H2, Radiant Heater, Bar Avec, Chicago, IL
Image attribution:

Solaira, ICR Series, H2, Bar Avec, Chicago, IL

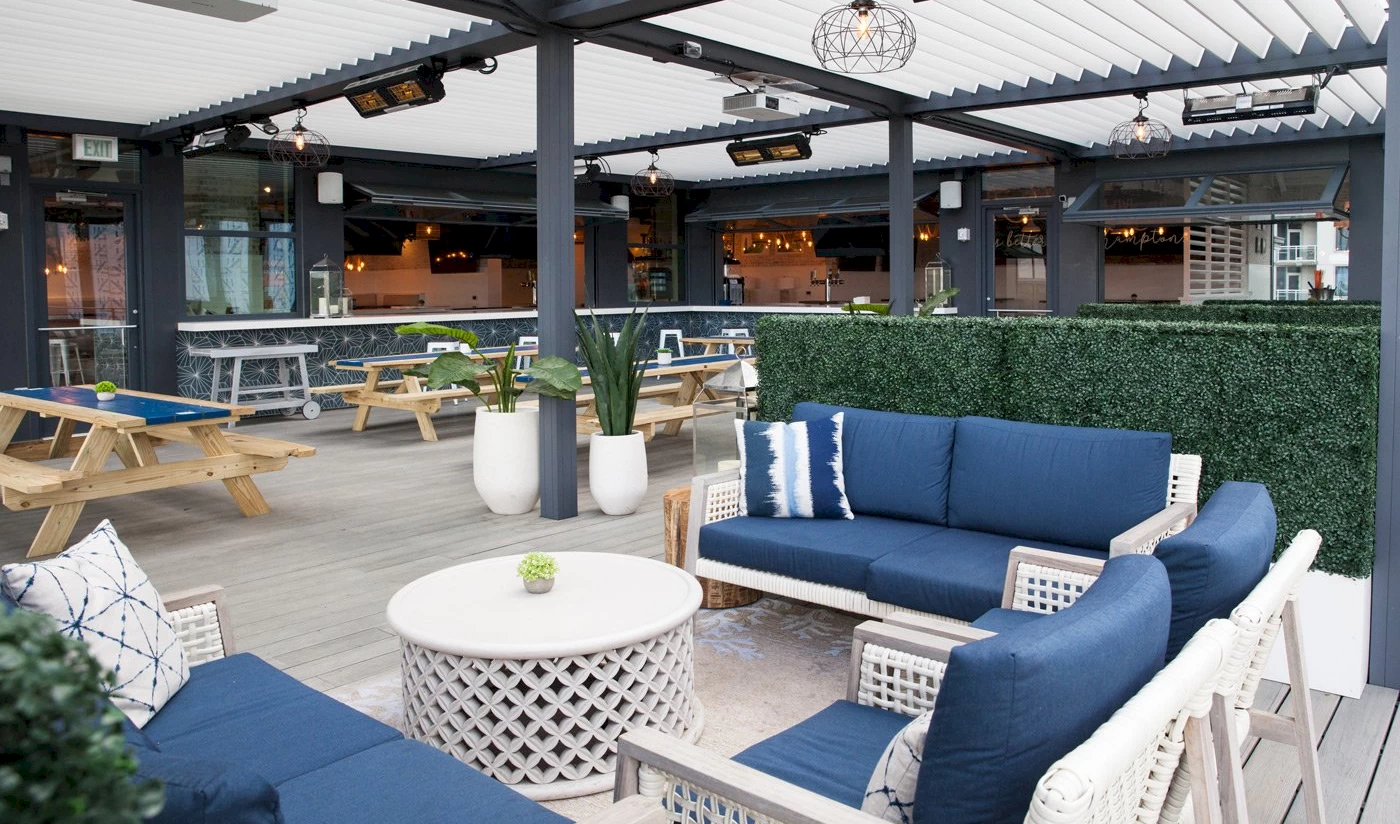

ICR Series H2, Radiant Heater, Hampton Social, Chicago, IL
Image attribution:

Solaira, ICR Series, H2, Hampton Social, Chicago, IL

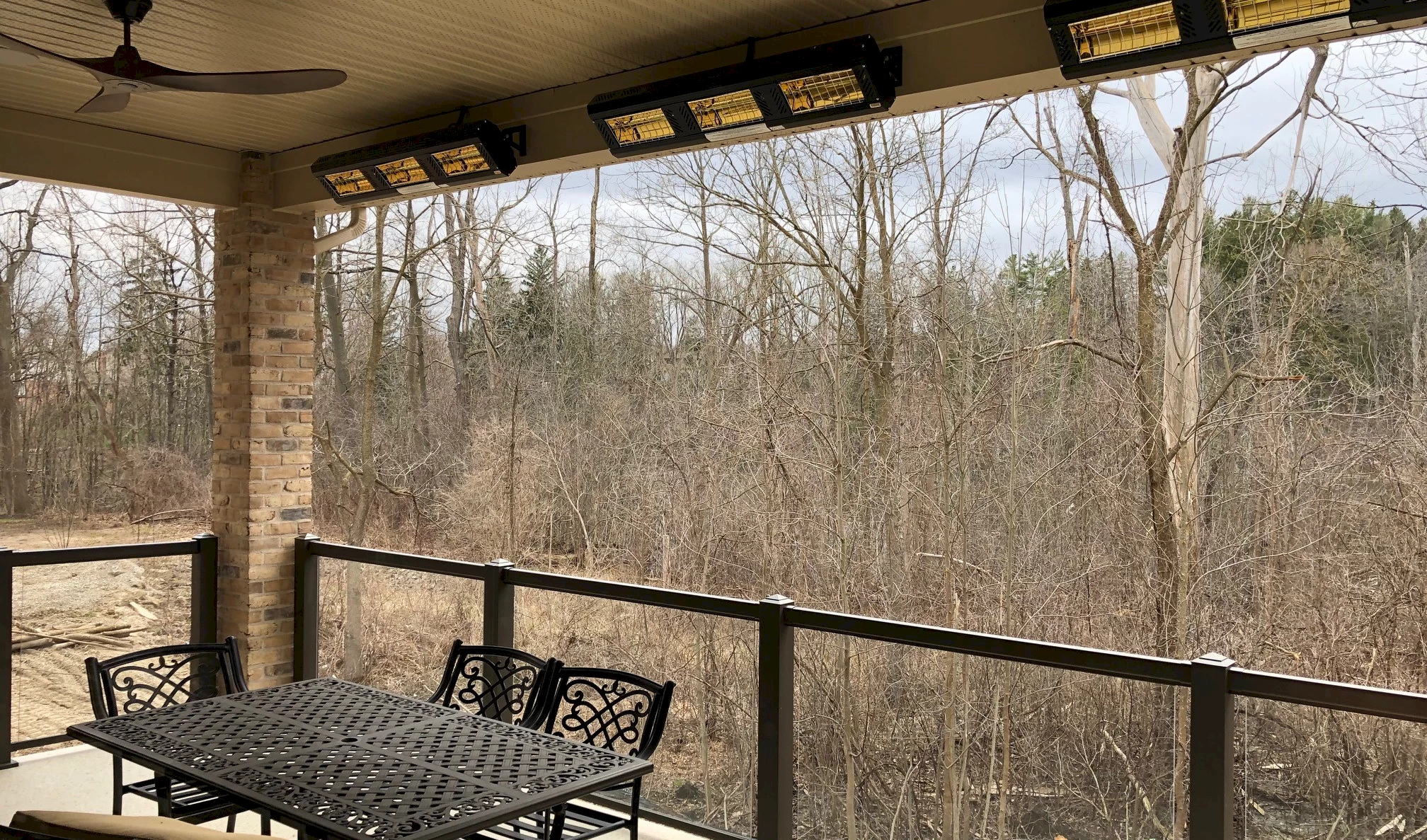

ICR Series, H3, Radiant Heater, Residential Application
Image attribution:

Solaira, ICR Series, H3, Residential Application
